Key Application Insights for Magnetic Cores

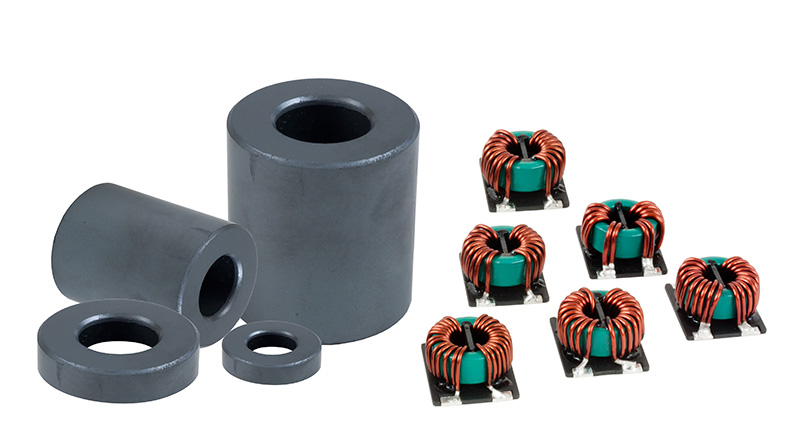

Composition of Ferrite Materials

Ferrites are ceramic-like magnetic materials whose primary constituent is ferric oxide (Fe₂O₃). To tailor their electromagnetic characteristics, manufacturers incorporate one or more additional metal oxides or carbonates—commonly manganese, zinc, nickel, or magnesium. These dopants fundamentally reshape the permeability spectrum, coercivity, and loss profile of the finished ferrite. Even slight adjustments in composition can lead to substantial differences in performance, especially in high-frequency or high-current environments. As a result, understanding the chemical backbone of the material is indispensable when selecting a magnetic core for precision or high-reliability designs.

Electrical Resistivity Considerations

Ferrite materials are not naturally insulating. Their bulk resistivity varies widely depending on composition, grain structure, and manufacturing process. This variance becomes critical in applications where withstand voltage or insulation resistance is important. In circuits exposed to elevated voltages, surge events, or reinforced isolation requirements, designers must scrutinize resistivity ratings to avoid leakage currents, partial discharge, or dielectric breakdown. Selecting the correct grade of ferrite ensures stable operation and safeguards the surrounding components from unexpected overstress.

Curie Temperature and High-Temperature Performance

Some ferrites exhibit relatively low Curie temperatures—the threshold at which magnetic properties begin to collapse. When operating in high-temperature environments, permeability can drift dramatically, leading to noticeable changes in inductance and impedance. This shift becomes especially apparent during high-temperature EMI filter testing, where insertion loss at elevated temperatures may deviate significantly from room-temperature measurements. Such discrepancies often stem from thermal degradation of permeability. Incorporating sufficient thermal derating, ventilation, or alternative ferrite formulations helps maintain predictable performance across wide temperature spans.

Ferrite Selection for Common-Mode Chokes

Power-line common-mode chokes typically require large inductance values to effectively attenuate broadband interference. Manganese-zinc (Mn-Zn) ferrites are the material of choice for these components due to their high permeability and superior low-frequency loss characteristics. Their magnetic advantages allow designers to achieve substantial inductance without excessive turns, minimizing copper losses while maintaining strong suppression of common-mode noise.

Impact of DC Bias on Ferrite Impedance

DC bias exerts a profound influence on ferrite behavior. As DC current increases, the ferrite’s permeability drops, reducing the inductive reactance and reshaping the impedance curve—most notably at lower frequencies. This bias-induced reduction in impedance must be considered when selecting beads or chokes for power rails.

A common engineering guideline suggests that current flowing through a ferrite bead should not exceed one-fifth of its rated value to keep DC-bias distortion within acceptable levels. At higher frequencies, the impedance becomes more resistive, and the influence of DC bias diminishes. This distinction arises because resistive loss dominates at high frequencies, while inductive reactance—which depends heavily on permeability—dominates at low frequencies.

Materials with higher permeability are more sensitive to DC bias, making them prone to saturation when exposed to strong magnetic fields. Once the magnetic core approaches saturation, permeability collapses sharply, and inductance drops. In thermal analysis, RMS current is adequate for estimating copper losses, but when evaluating saturation risk, peak current must always be considered. Failure to do so can create unpredictable issues during conducted EMI testing, where measurement variations between runs may appear inexplicably inconsistent.

Manufacturers typically specify two current ratings for inductive components: temperature-rise current and saturation current. Ensuring that the circuit’s peak current remains below the saturation threshold is essential for maintaining stability, reliability, and magnetic linearity.
