High-Density, High-Efficiency Solutions: How Modern Connectors Power Automation and Consumer Innovation

Introduction

Overview of the Growing Demand in Industrial Automation and Consumer Electronics

In an era marked by rapid industrial transformation and the continuous evolution of consumer electronics, connector and terminal technology has emerged as a pivotal innovation. The surging demand for automation, combined with the proliferation of smart devices, is driving the need for connectors that offer robustness, precision, and efficiency. As industries scale to meet these demands, leading companies are introducing novel solutions that address challenges related to wiring efficiency, high-density interconnects, and modularity.

The Role of Connector and Terminal Technology in Modern Manufacturing

Connectors and terminals serve as the essential links within complex electronic systems. In both industrial automation and consumer electronics, these components ensure secure electrical connections, signal integrity, and ease of integration. As product complexity increases, the demand for connectors that support efficient assembly and robust performance continues to grow. This article examines three groundbreaking solutions: Phoenix Contact's XT/XTV series, Hirose's FH81 series, and Jinling Electronics' 1.27mm board-to-board connector.

Part I: Phoenix Contact's XT/XTV Series - Enhancing Smart Manufacturing

Phoenix Contact’s Innovations: XT/XTV Series Connectors

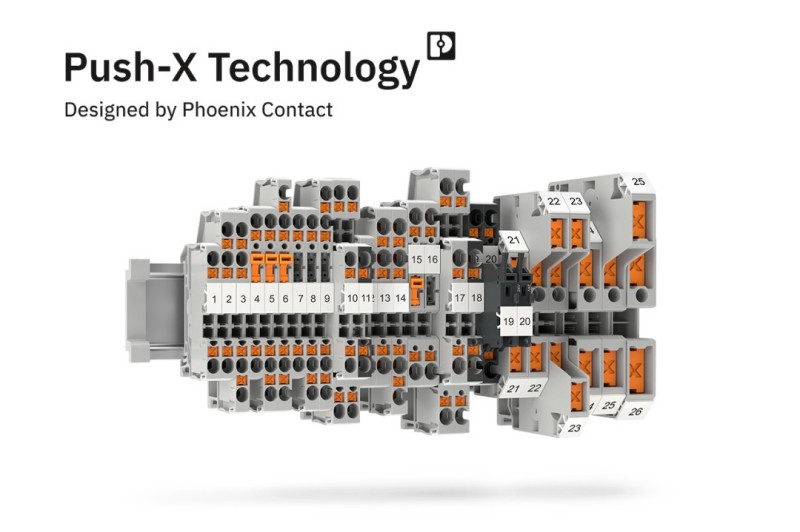

Phoenix Contact has long been at the forefront of industrial connectivity solutions. With the introduction of the XT/XTV series, the company reaffirms its commitment to advancing smart manufacturing. These connectors feature the revolutionary Push-X connection technology, which allows for tool-free wiring, significantly increasing operational efficiency.

Key Features of the XT Series

Increased Flexibility

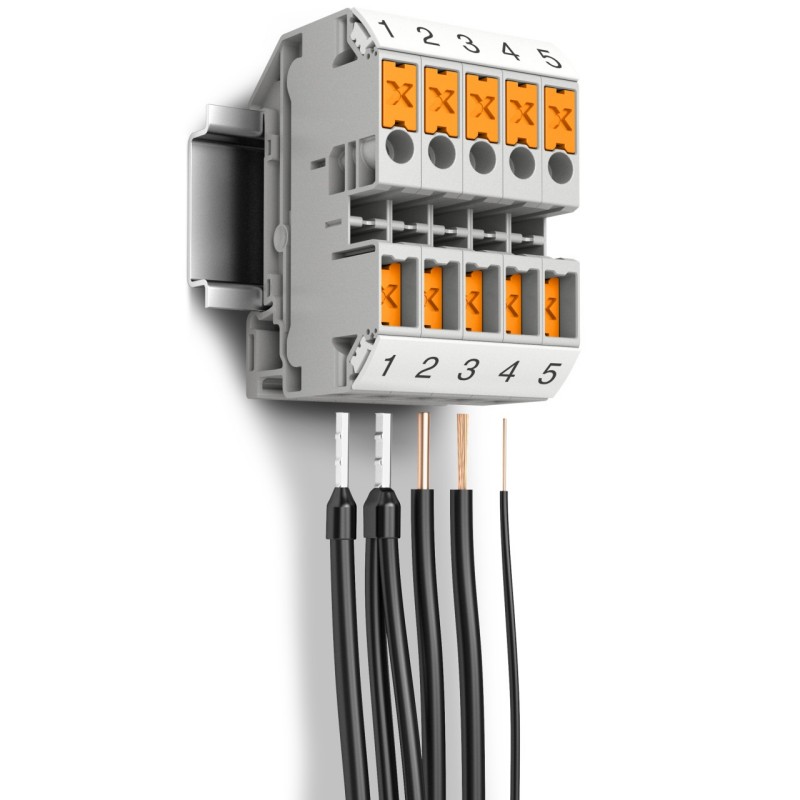

The XT series accommodates various wire types, including rigid and multi-core flexible wires, even those without crimped ends. This adaptability reduces the need for pre-processing and enhances installation speed.

Improved Usability

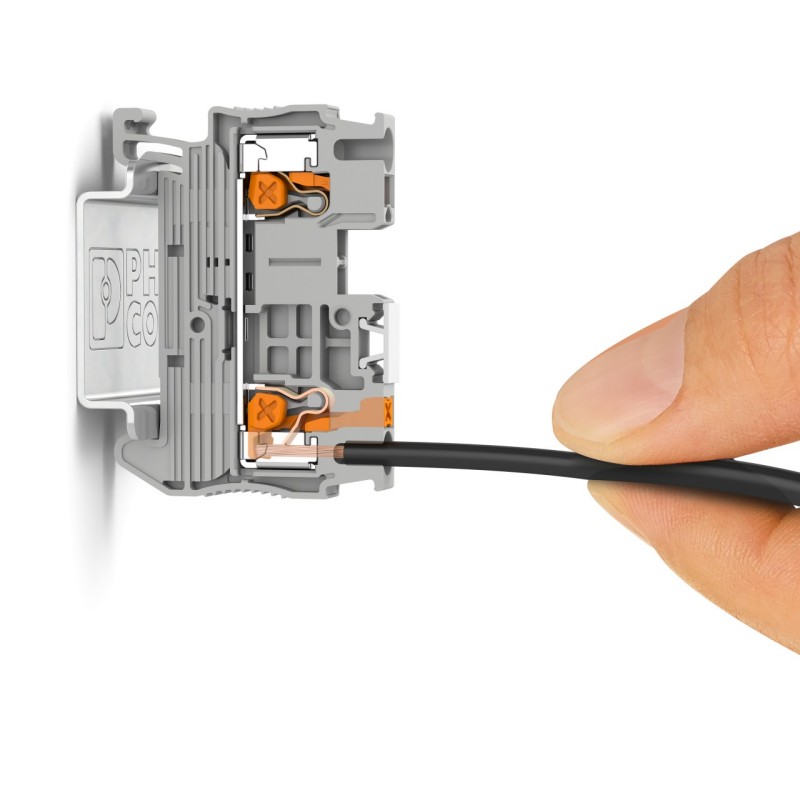

The connectors require minimal insertion force, allowing for quick and reliable wire attachment without specialized tools. The clear wiring feedback further ensures connection security.

Reduced Wiring Time

Compared to traditional screw-type terminals, the XT series can cut wiring time by up to 50%, as the tool-free process eliminates the need for crimp heads or other preparation.

Product Variants

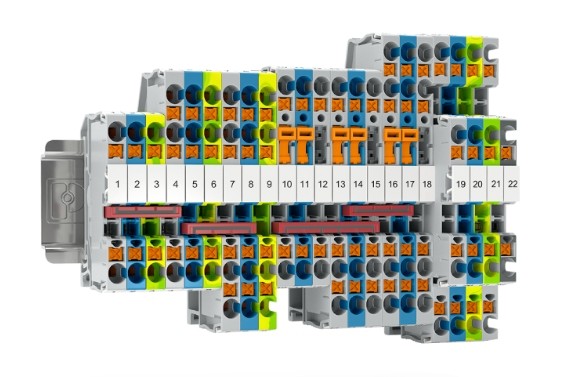

XT Series - Front Entry Connectors

These connectors feature a front-entry design, suitable for wire diameters ranging from 0.5mm² to 4mm², allowing versatile integration in compact spaces.

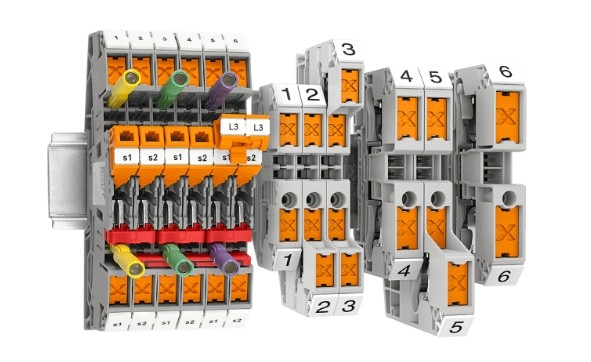

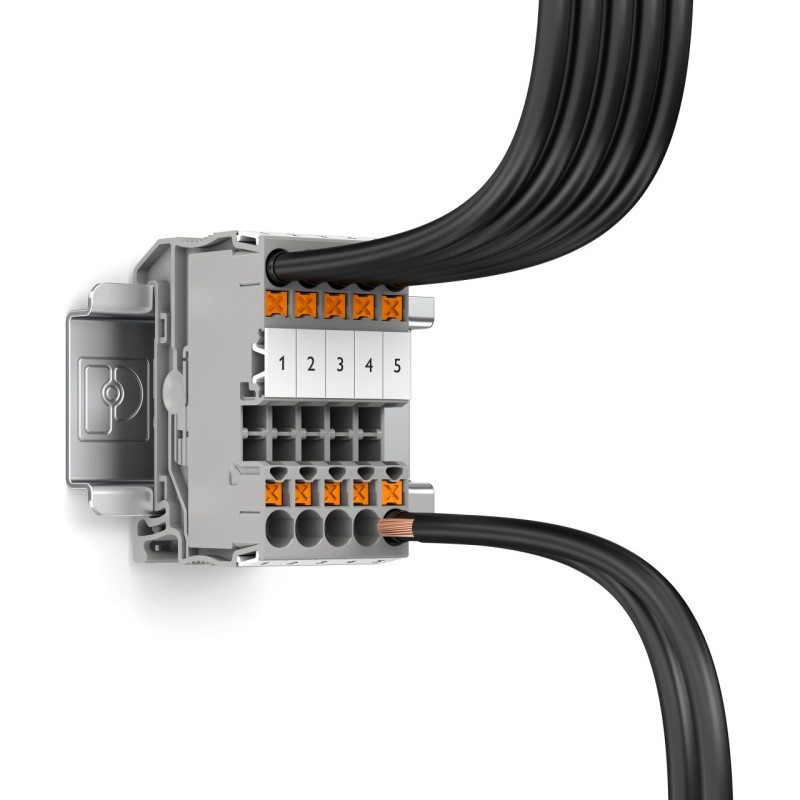

XTV Series - Side Entry Connectors

The XTV series offers side-entry wiring, accommodating wire diameters from 0.5mm² to 25mm². Its design supports various configurations, including through-type and disconnect test terminals.

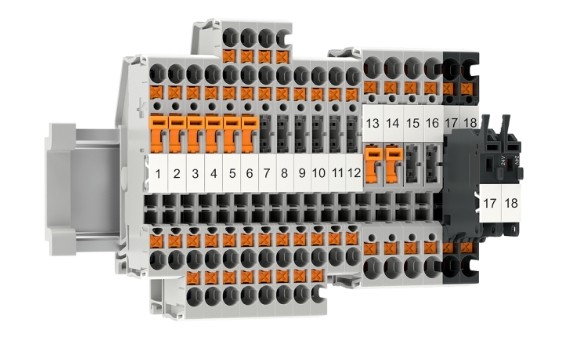

XT 2.5 Series Functional Terminals

These functional terminals feature knife-switch designs with multiple connection points, facilitating modular configurations in control systems. The COMBI variant supports flexible plug combinations for customized applications.

Applications in Smart Manufacturing

From industrial control panels to modular automation systems, the XT/XTV series' versatile connectivity and rapid installation make it ideal for smart manufacturing environments. The enhanced flexibility supports a wide range of industrial automation setups.

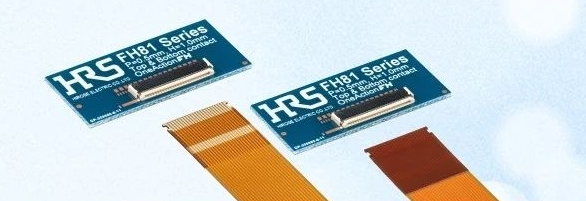

Part II: Hirose FH81 Series - Revolutionizing Consumer Electronics

Hirose's Approach to Design Flexibility and Assembly Efficiency

In the consumer electronics sector, compact and efficient connector solutions are vital. Hirose's FH81 series stands out with its one-step lock mechanism and dual-contact design, which enhance both usability and reliability. This innovation addresses the need for streamlined assembly in devices such as VR headsets and laptops.

Key Features of the FH81 Series

One-Step Lock Mechanism

The intuitive locking system ensures rapid and secure connections, supporting automated assembly processes and reducing the risk of connector misalignment.

Dual Contact Design

With contact points on both sides, the FH81 series maximizes stability, accommodating varied board layouts while maintaining strong electrical continuity.

Enhanced FPC Retention

The high-retention design secures flexible printed circuits (FPCs) firmly, even during rigorous usage, ensuring long-term durability.

Compatibility with FH34 Series

Maintaining the same dimensions as the popular FH34 series, the FH81 connectors provide an easy upgrade path without altering existing layouts.

Applications in VR Devices and Notebooks

The demand for lightweight, compact, and durable connectors makes the FH81 series an ideal choice for consumer electronics. Its integration into VR and laptop assembly lines streamlines production and enhances product reliability.

Part III: Jinling Electronics’ 1.27mm Board-to-Board Connector - Solving High-Density Interconnect Challenges

Jinling's Commitment to High-Density Interconnect Solutions

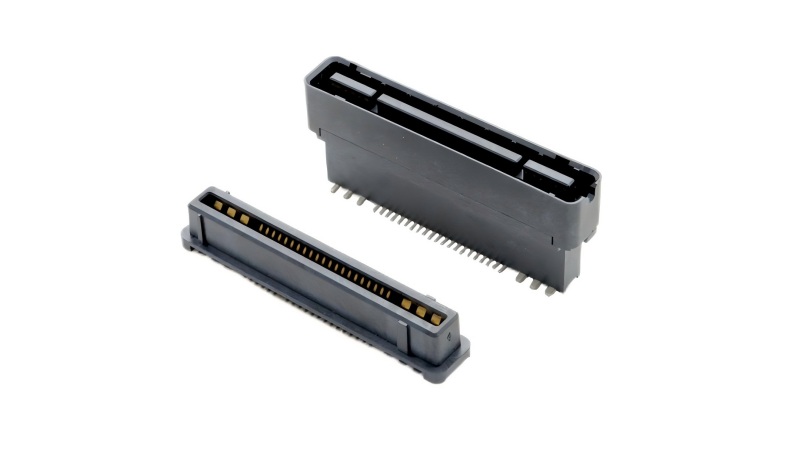

Addressing the increasing need for compact and high-current connections, Jinling Electronics introduces the 1.27mm board-to-board connector. Its high current capacity and flexible stacking height make it ideal for applications requiring compact yet powerful interconnect solutions.

Key Features of the 1.27mm Board-to-Board Connector

Flexible Stacking Heights

This connector offers adjustable stacking heights from 5mm to 11mm, meeting diverse PCB spacing requirements.

High Current Capacity

Rated at 3A AC/DC, the connector ensures efficient power transmission even in dense electronic assemblies.

Enhanced Reliability

Gold-plated contacts reduce resistance, maintaining signal integrity and prolonging connector life.

Mechanical Stability

Locking mechanisms prevent loosening due to vibration, making it suitable for applications in automotive and communication devices.

Application Areas

LED Displays

Communication Devices

Automotive Electronics
