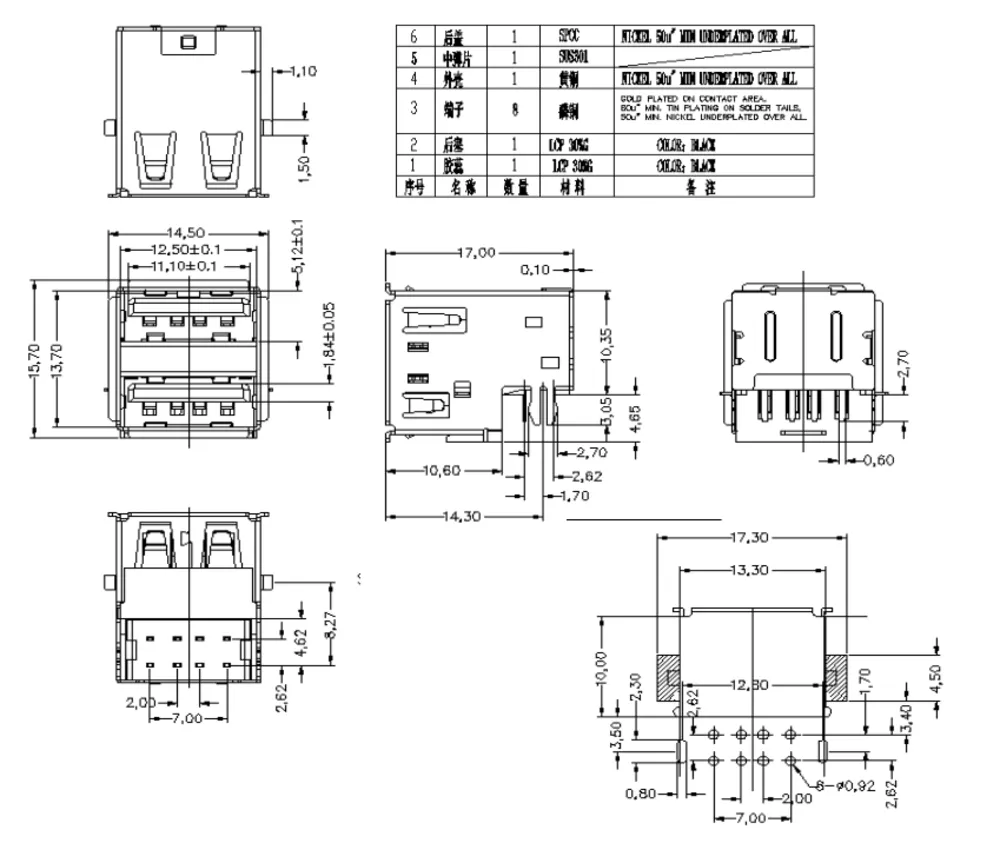

Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267
Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267

Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267

Share

Rolled-edge + forked pins. Support feet, brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

Stabilized board-mount connector. 30V DC, 100M ohm insulation resistance.
