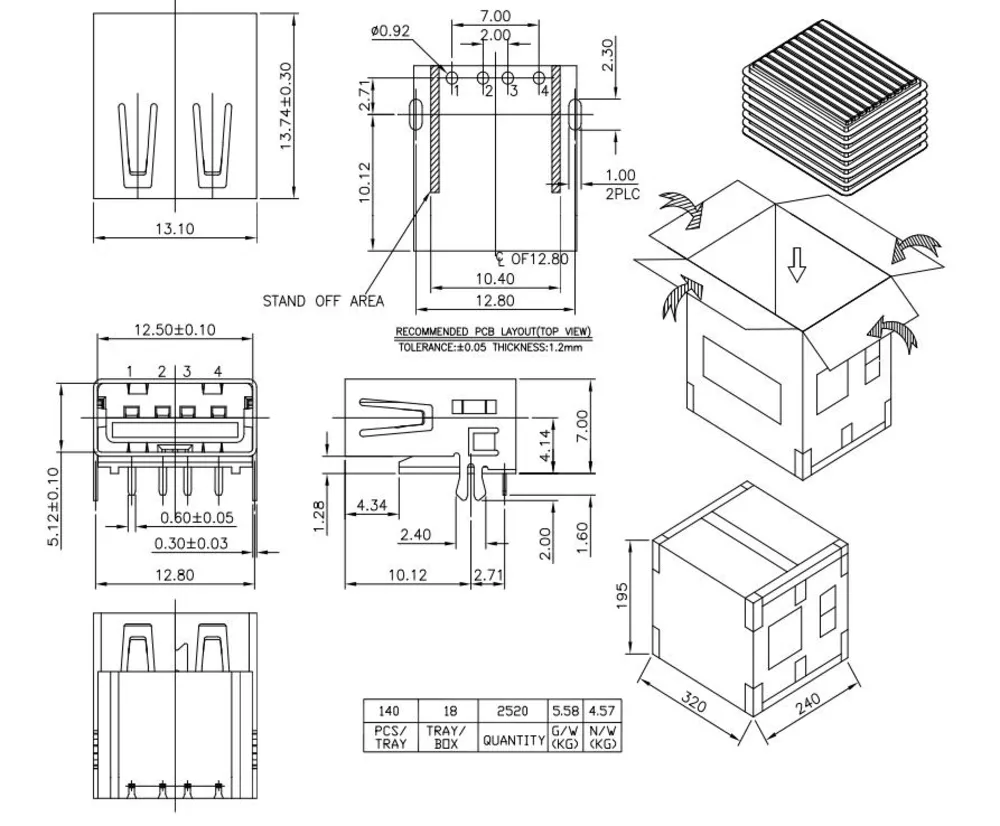

Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212
Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212

Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212

Share
p4.14mm height, reverse-mount design. No flange, brass shell./p
  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 2.0 Single-Layer 180 Degree Locking Connector - C040141
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

On-board connector with 100V withstand voltage. Suitable for PCB surface mounting.
