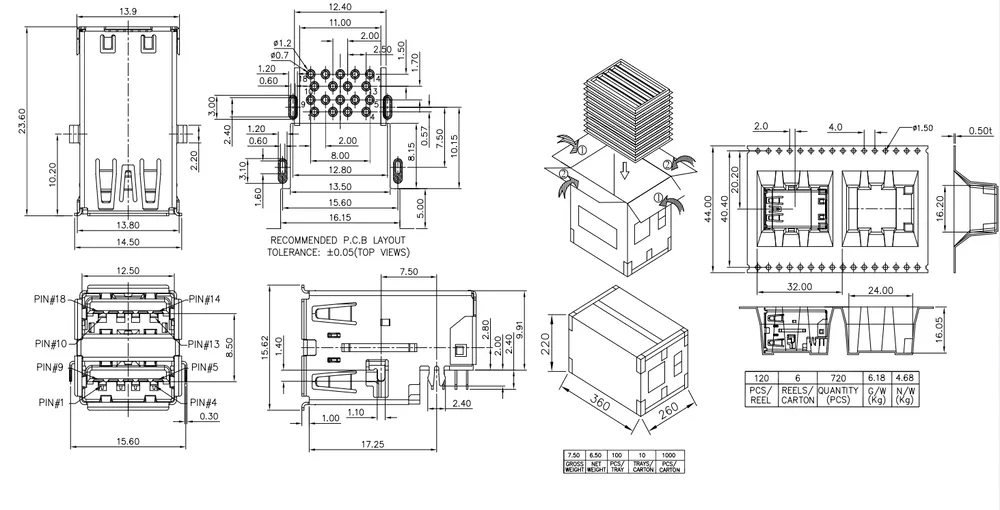

Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141
Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141

Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141

Share

2.80mm mount height. Forward bent-pin design.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Dual-Color USB 3.0 Double-Layer Connector - C071031
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

Surface-mount connector with SUS shell. -55 Degree C to 85 Degree C operating range.
