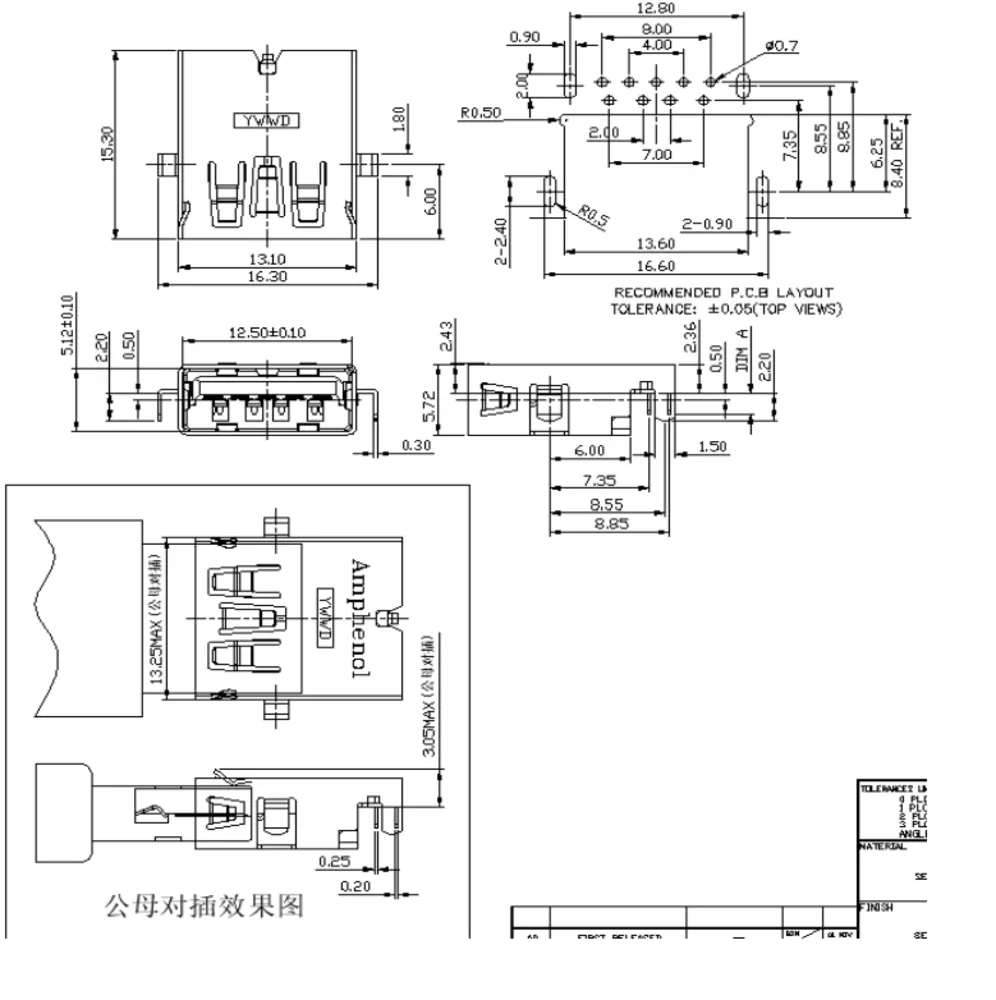

Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022
Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022

Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022

Share
p0.5mm mount height, forward orientation. SUS shell./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.1 Single-Layer 90 Degree Straight-Pin Connector - C071377
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Ultra-low-profile SMT connector. Automated PCB assembly compatible.
