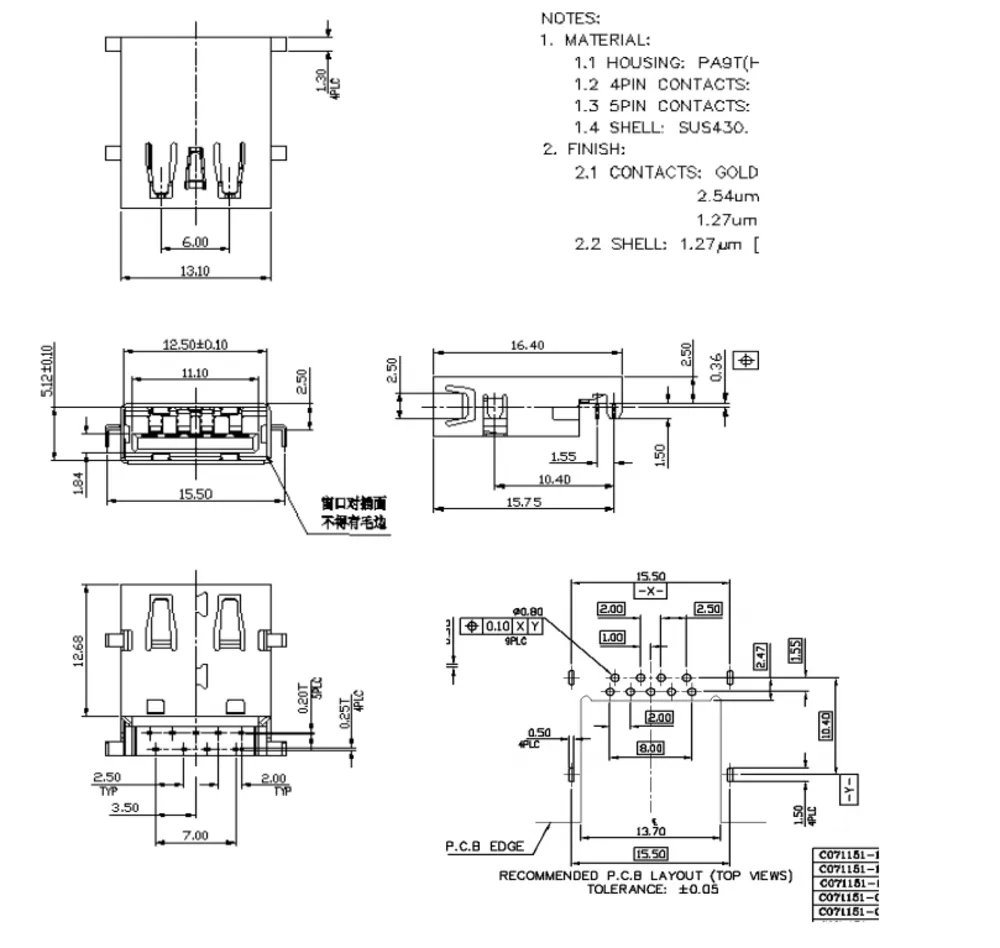

Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151
Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151

Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151

Share

0.36mm mount height, reverse orientation. U2/U3 contacts.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Brass, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022
usb connector typesusb charger typesusb 3.0 female connectorusb 3 connector typesUSB C connector
  • Product Details
  • Download

Micro-height connector for thin devices. BRASS contacts with selective plating.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

Dual Type-C 24P 90 Degree Combo Connector - C071243

Dual Type-C 24P 90 Degree Combo Connector - C071243

90 Degree dual Type-C ports. SUS shell, nickel plating.

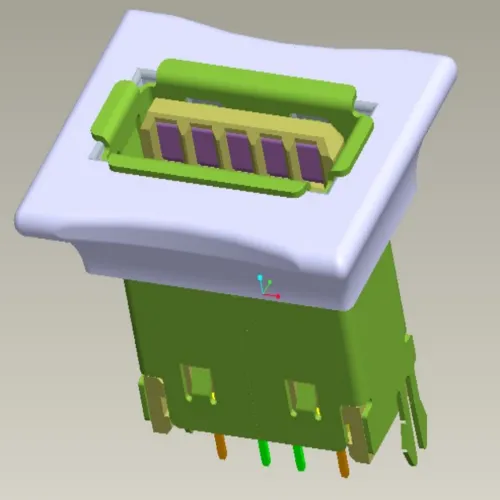

USB 3.0 Single-Layer 180 Degree Locking Connector - C071026

USB 3.0 Single-Layer 180 Degree Locking Connector - C071026

180 Degree locking mechanism. 1.8A power delivery, SUS shell.

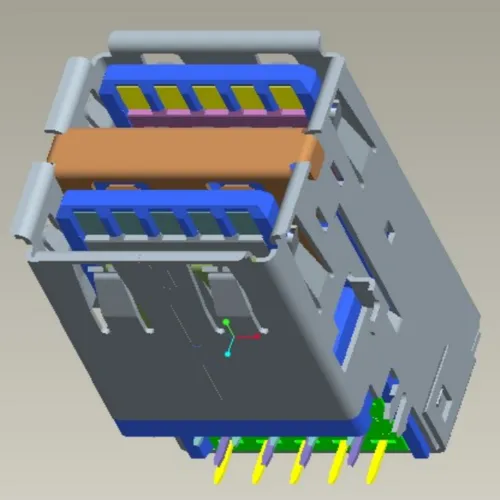

Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141

Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141

2.80mm mount height. Forward bent-pin design.

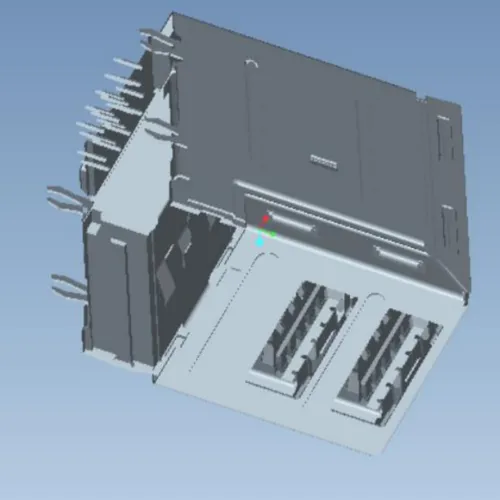

HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724

HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724

Front-cutout for HDMI integration. 0.25A signal contacts.

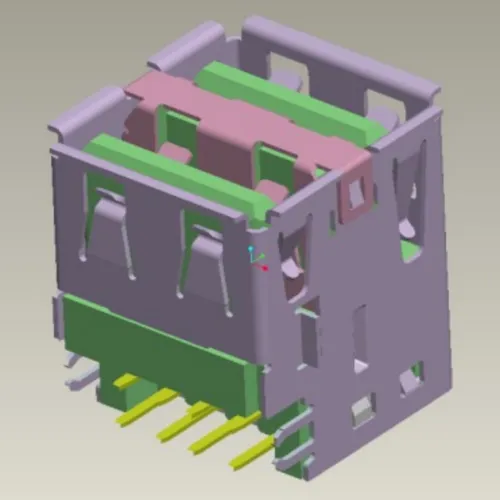

USB 3.0 Double-Layer 90 Degree Connector - C023069

USB 3.0 Double-Layer 90 Degree Connector - C023069

Reverse-mount double-layer design. 30V DC, 100V dielectric strength.

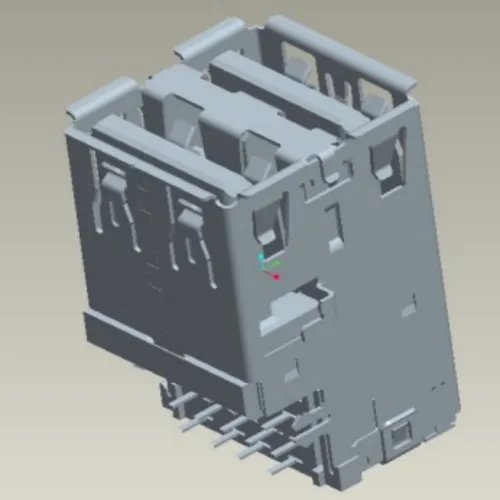

Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169

Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169

2.80mm board-mount height. Reverse bent-pin design.

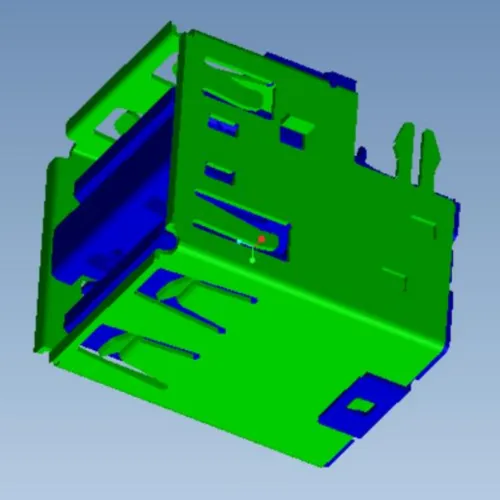

Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267

Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267

Rolled-edge + forked pins. Support feet, brass shell.

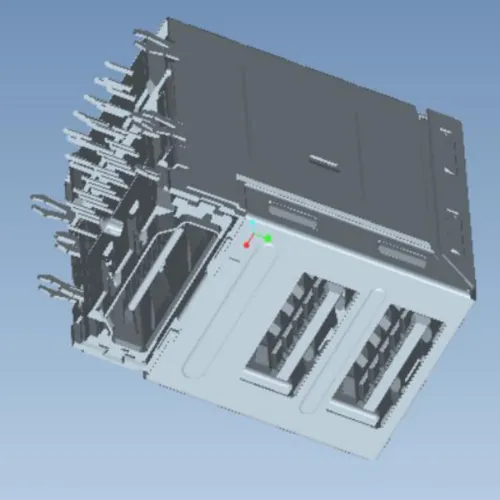

USB 3.1 Double-Layer + HDMI 2.1 Combo Connector - L000797
