DSX221G SMD | MHz Band Crystal Resonators For Automotive

DSX221G SMD | MHz Band Crystal Resonators For Automotive

Share

DSX221G is 2520 SMD Crystal Resonators (12MHz-64MHz) with AEC-Q200 compliance, 0.75mm ultra-low profile, and superior heat resistance. Ideal for Bluetooth, GPS, Wi-Fi, RKE systems, and automotive safety controls. Reliable MHz-band solutions for precision and durability.

Product Name: Crystal Resonators
Brand: KDS
Catalog Number: DSX221G
Frequency Range: 12MHz up to 64MHz.
Load Capacitance: 8pF, 10pF, 12pF
Size: 2520
Lead Time: 2 weeks

[email protected]

KDS Crystal Crystal Resonators crystal oscillator DSX221G AEC-Q200 KDS crystal oscillator

Product Details
Download

DSX221G SMD / MHz Band Crystal Resonators For Automotive

Features

2520 size miniature and lightweight SMD crystal resonator with a low profile of 0.75mm.
Excellent heat resistance, High precision and high reliability
Offers a wide range of frequencies from a comparatively low 12MHz up to 64MHz.
AEC-Q200 Compliant

Applications

Automotive radio applications such as Bluetooth, wireless LAN, GPS/GNSS.
RKE（Remote Keyless Entry）, safety controls and multimedia devices

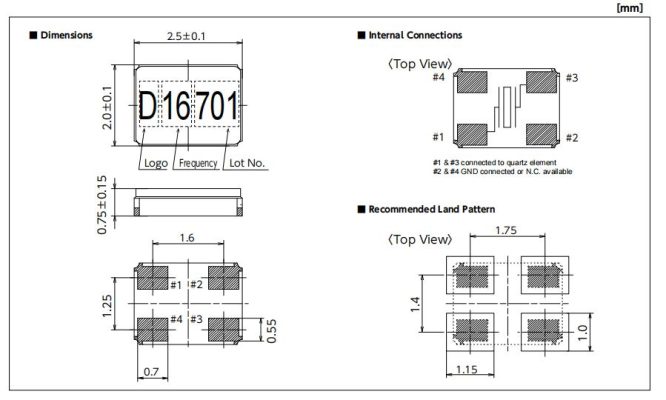

DSX221G Dimensions
