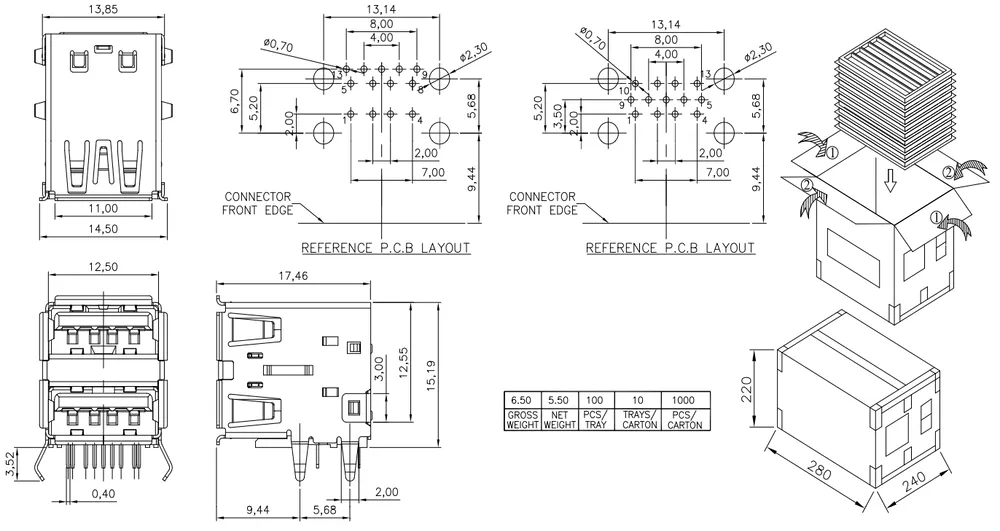

Dual-Color USB 3.0 Double-Layer Connector - C071031
Dual-Color USB 3.0 Double-Layer Connector - C071031

Dual-Color USB 3.0 Double-Layer Connector - C071031

Share

Two-tone housing. 90 Degree bent pins, U2/U3 protocol support.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Triple-Port USB 3.0 Type-A Connector - C071174
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

Visually-coded connector with 100M ohm insulation resistance. Industrial applications.
