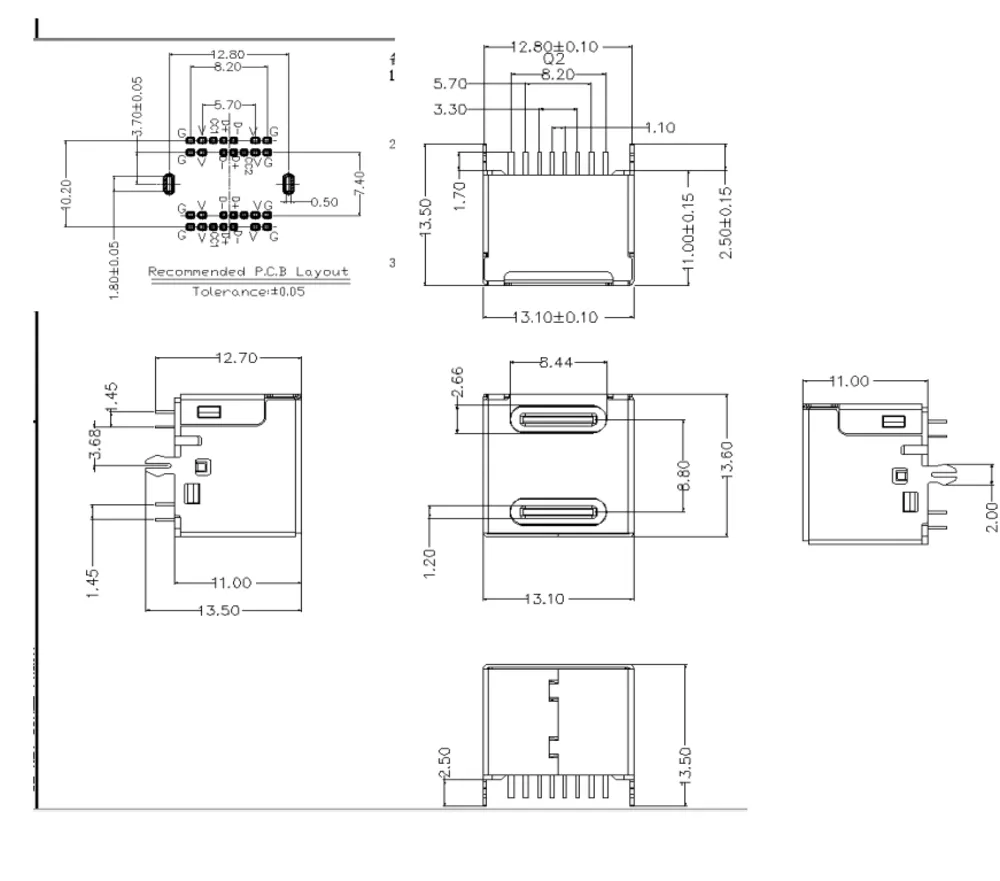

Dual Type-C 14P 180 Degree Combo Connector - L000009
Dual Type-C 14P 180 Degree Combo Connector - L000009

Dual Type-C 14P 180 Degree Combo Connector - L000009

Share

Dual Type-C ports. 180 Degree orientation, brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151
usb connector typesusb charger typesCombo Connectorfemale usb c portusb c female portType C FemaleUSB C connector
  • Product Details
  • Download

Reversible Type-C connector pair with 1.8A power delivery. 30V DC rating.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

USB 3.0 Single-Layer 90 Degree Connector - L000723

USB 3.0 Single-Layer 90 Degree Connector - L000723

13.70mm height (duplicate). UL94-V0 housing, 30V DC.

USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227

USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227

Triple-layer fork-pin design. 1.5A current, 30m ohm contact resistance.

USB 2.0 Type-B 180 Degree Bent-Pin Female Connector - C071199

USB 2.0 Type-B 180 Degree Bent-Pin Female Connector - C071199

180 Degree Type-B female. SPCC shell, UL94-V0 housing.

4-Port USB 3.0 Type-A Connector - C071070

4-Port USB 3.0 Type-A Connector - C071070

Quad-port USB 3.0 AF connector. 1.8A power delivery per port.

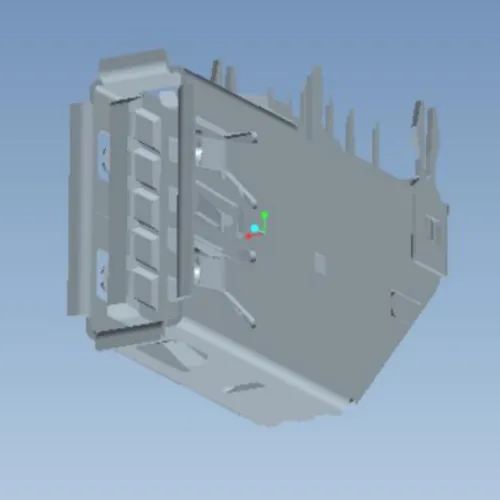

Reverse USB 3.1 Side-Mount Forked-Pin Connector - L000601
