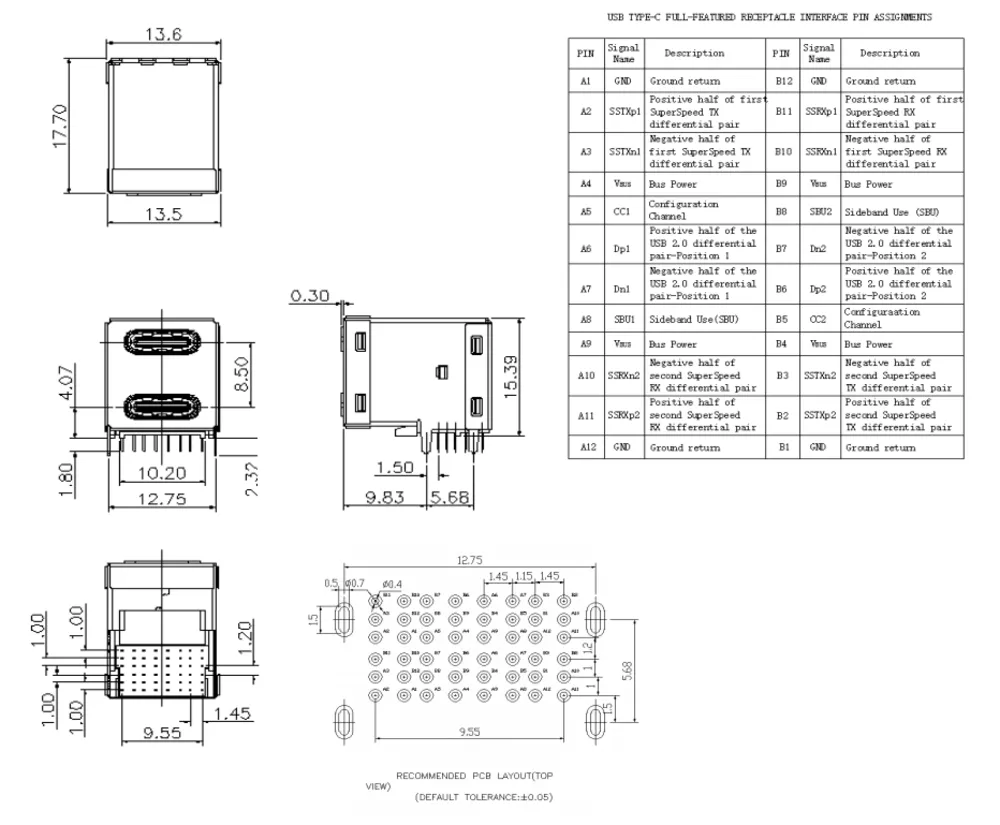

Dual Type-C 24P 90 Degree Combo Connector - C071243
Dual Type-C 24P 90 Degree Combo Connector - C071243

Dual Type-C 24P 90 Degree Combo Connector - C071243

Share

90 Degree dual Type-C ports. SUS shell, nickel plating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Dual Type-C 14P 180 Degree Combo Connector - L000009
usb connector typesusb charger typesCombo Connectorfemale usb c portusb c female portType C FemaleUSB C connector
  • Product Details
  • Download

High-power Type-C connector supporting 7A current. Fast-charging applications.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121

Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121

Straight-pin DIP design. Brass/SUS shell, 1.5A current rating.

USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

Type-B female port. 90 Degree bent pins, PBT housing.

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Unrolled-edge forward fork pins. SUS shell with nickel plating.

USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703

USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703

Dual-protocol integration. PBT+LCP housing, 30V rating.

Stackable Type-C USB 3.1 Raised Single-Layer Connector - C071314

Stackable Type-C USB 3.1 Raised Single-Layer Connector - C071314

Front-stackable design. Raised single layer, 10Gbps speed.

Waterproof USB 2.0 + Type-C 16P Connector - C071313

Waterproof USB 2.0 + Type-C 16P Connector - C071313

7A high-current, IP-rated. 16-pin Type-C, -40Degree C to 125Degree C.

Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

2.63mm board-mount height, reverse orientation. 30V DC, 100M?? insulation.

Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022

Board-Mount USB 3.0 Single-Layer 90 Degree Connector - C071022

0.5mm mount height, forward orientation. SUS shell.

Modified USB 3.0 Raised Single-Layer Connector - C023669

Modified USB 3.0 Raised Single-Layer Connector - C023669

Double-to-single layer conversion. Raised base for thermal management.

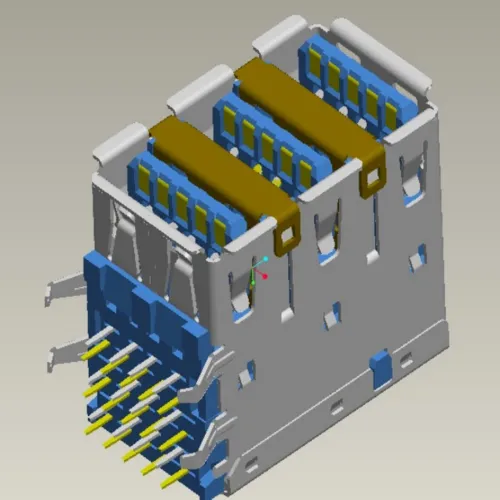

Triple-Port USB 3.0 Type-A Connector - C071174
