Enhanced-Depth USB 3.0 Double-Layer Connector - C071244
Enhanced-Depth USB 3.0 Double-Layer Connector - C071244

Enhanced-Depth USB 3.0 Double-Layer Connector - C071244

Share

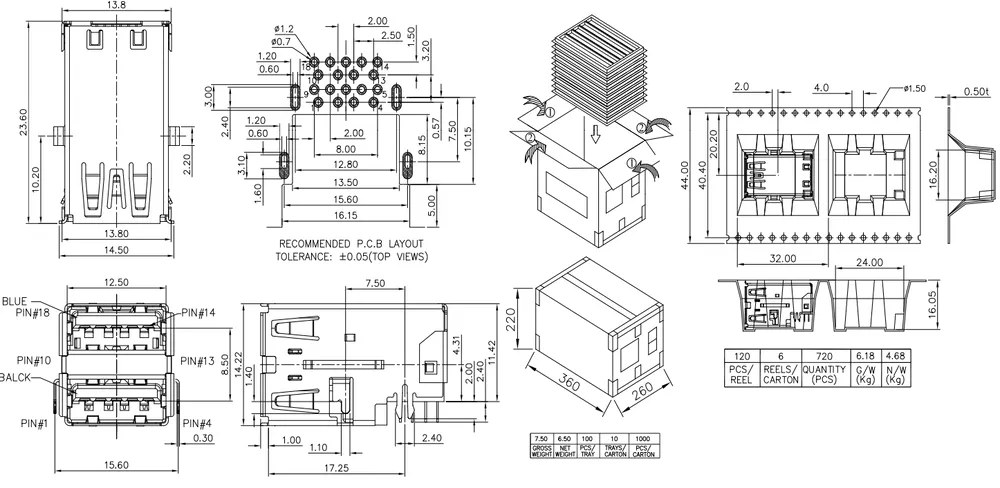

4.31mm mount depth. SUS shell with nickel plating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Deep-Mount USB 3.0 Double-Layer Connector - C071190
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

Deep-mount connector with 30m ohm contact resistance. 100V dielectric strength.
