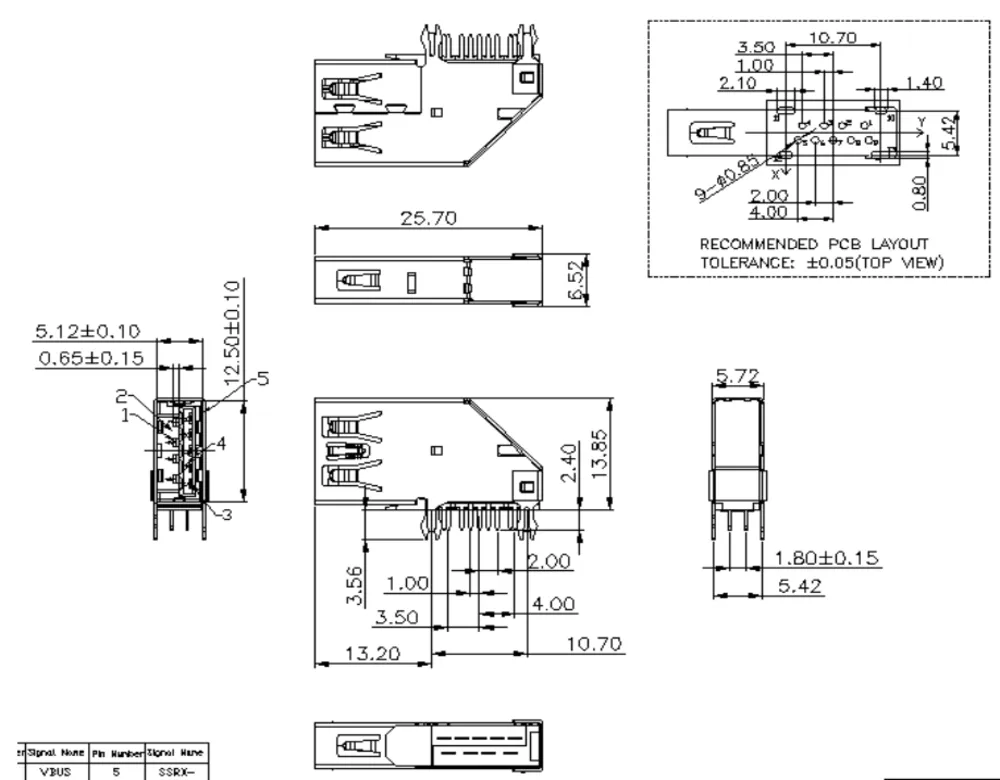

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546
Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Share

Unrolled-edge forward fork pins. SUS shell with nickel plating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Reverse USB 3.1 Side-Mount Forked-Pin Connector - L000601
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a femaleusb 3.1
  • Product Details
  • Download

Low-impedance (30m ohm) connector. 100V withstand voltage for harsh environments.
