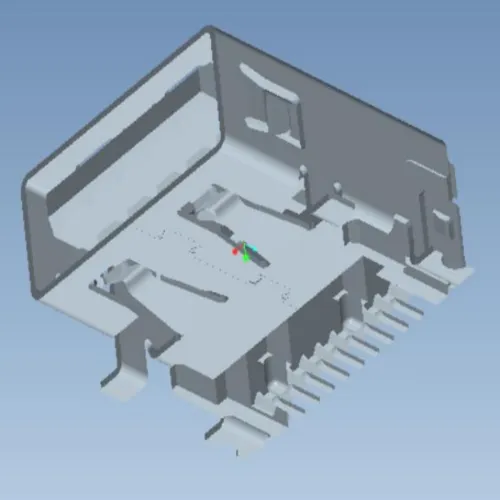

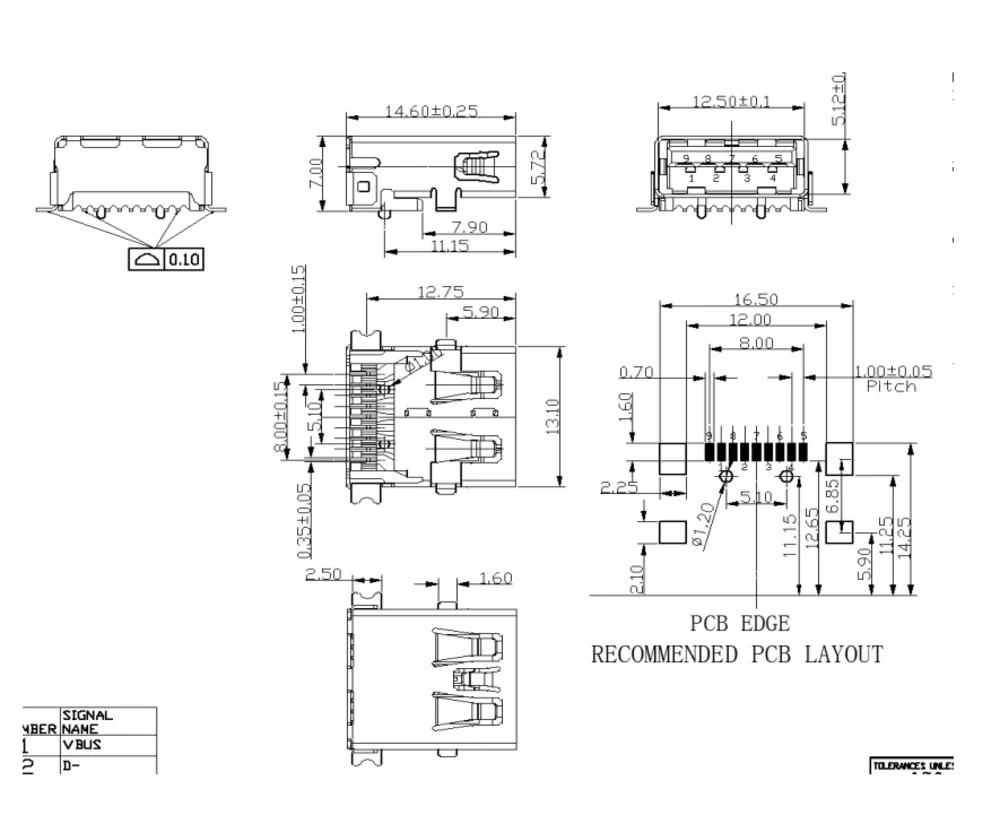

Full-SMT USB 3.0 Single-Layer Connector - C071375
Full-SMT USB 3.0 Single-Layer Connector - C071375
Full-SMT USB 3.0 Single-Layer Connector - C071375

Full-SMT USB 3.0 Single-Layer Connector - C071375

Share
pFull-surface SMT design. Nickel-plated brass shell./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
USB 3.0 Type-B Single-Layer 90 Degree Connector - L000428
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Lead-free connector compatible with reflow soldering. RoHS compliant.
