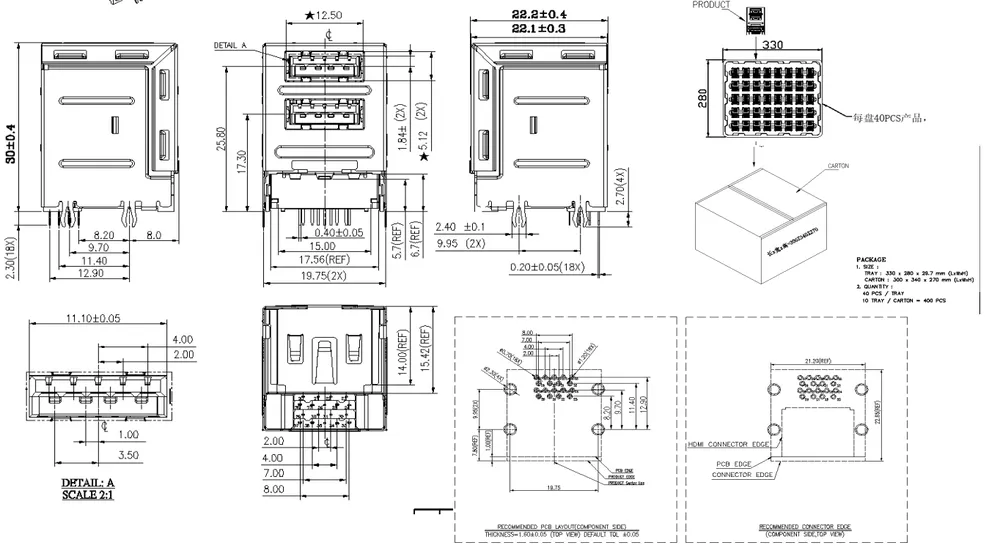

HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724
HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724

HDMI-Compatible USB 3.1 Raised Double-Layer Connector - L000724

Share
pFront-cutout for HDMI integration. 0.25A signal contacts./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Brass, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
10Gbps USB 3.1 Raised Double-Layer Connector - C071365
usb connector typesUSB A connectorusb charger typesusb3 femaleusb 3 1 type aCombo Connector
  • Product Details
  • Download

Hybrid USB 3.1 + HDMI connector with nickel-plated SUS shell. AV/IT applications.
