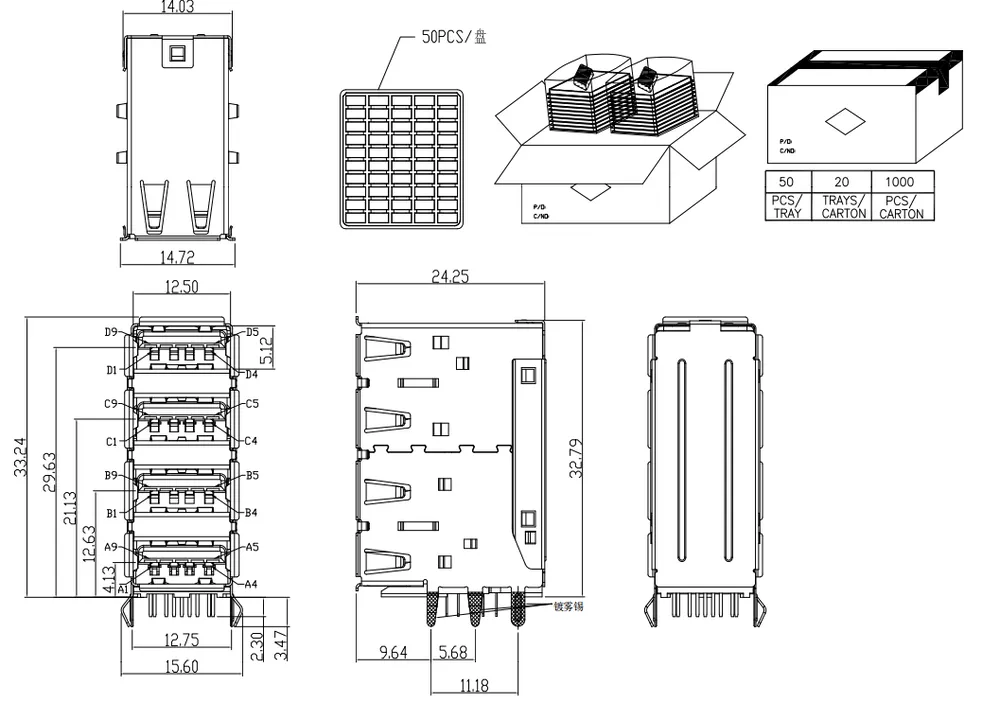

Quad-Layer USB 3.1 Hybrid Connector - C071347
Quad-Layer USB 3.1 Hybrid Connector - C071347

Quad-Layer USB 3.1 Hybrid Connector - C071347

Share
p2xU2 upper + 2xU3 lower layers. Fog-tin plated SUS shell./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Stackable Type-C USB 3.1 Triple-Layer Connector - C071317
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

Multi-protocol connector with 100M ohm insulation. Backward compatible with USB 2.0/3.0.
