Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552
Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

Share

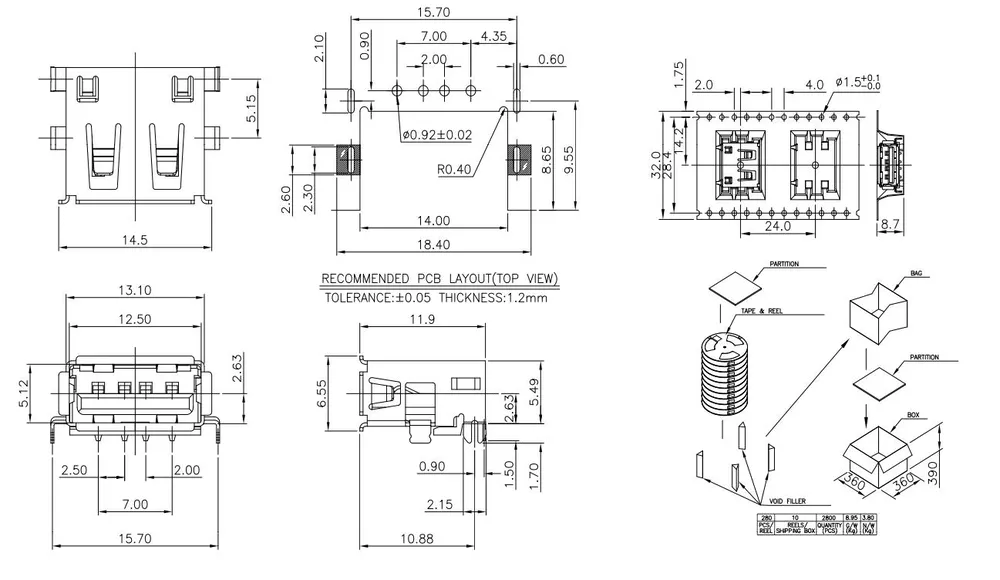

2.63mm board-mount height, reverse orientation. 30V DC, 100M?? insulation.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SK7, nickel plated
[email protected]
Previous
USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

Low-profile connector with SK7 shell. Ideal for space-constrained applications.
