Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169
Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169

Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169

Share

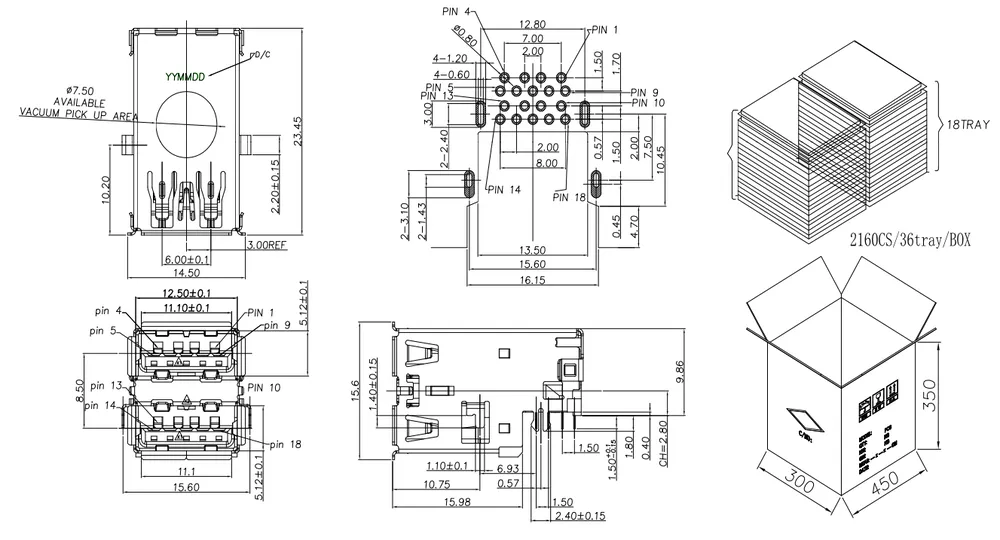

2.80mm board-mount height. Reverse bent-pin design.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.1 Quad-Layer 90 Degree Bent-Pin Connector - C071070
usb connector typesUSB A connectorusb charger typesusb 3.1usb3 female
  • Product Details
  • Download

Low-profile connector with 1.8A power delivery. 100V withstand voltage.
