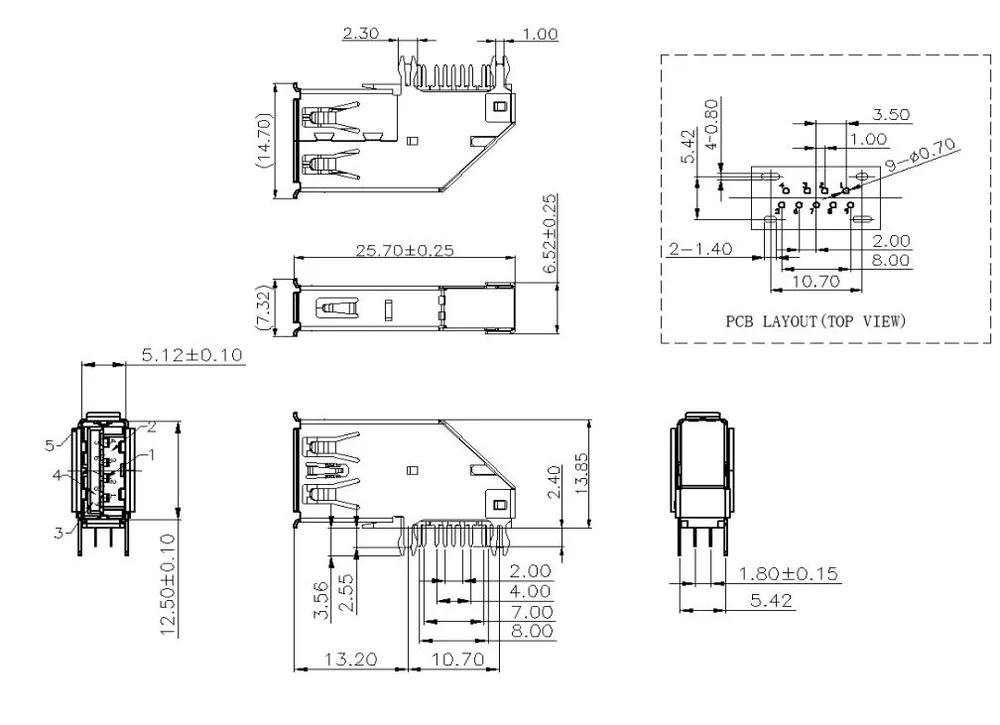

Reverse USB 3.1 Side-Mount Forked-Pin Connector - L000601
Reverse USB 3.1 Side-Mount Forked-Pin Connector - L000601

Reverse USB 3.1 Side-Mount Forked-Pin Connector - L000601

Share

Rolled-edge reverse fork pins. U2/U3 contacts with selective plating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a femaleusb 3.1
  • Product Details
  • Download

High-speed connector with 1.8A power delivery. -55 Degree C to 85 Degree C operating range.
