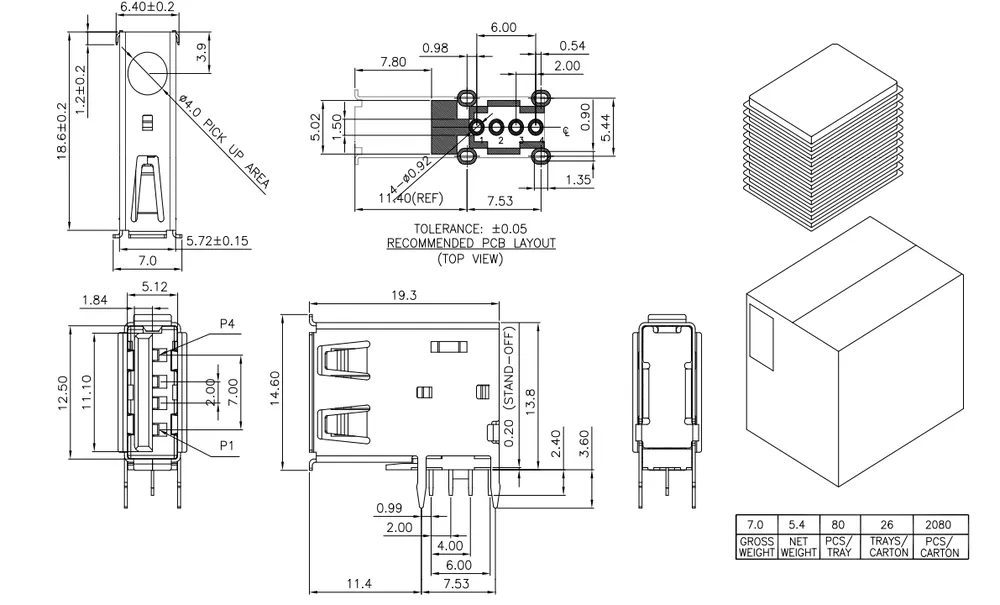

Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121
Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121

Side-Mount USB 2.0 90 Degree Straight-Pin Connector - C071121

Share

Straight-pin DIP design. Brass/SUS shell, 1.5A current rating.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: Brass/SUS, nickel plated
[email protected]
Previous
Side-Mount USB 2.0 90 Degree Bent-Pin Connector - C071171
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a female
  • Product Details
  • Download

Through-hole connector with 100V dielectric strength. Industrial automation use.
