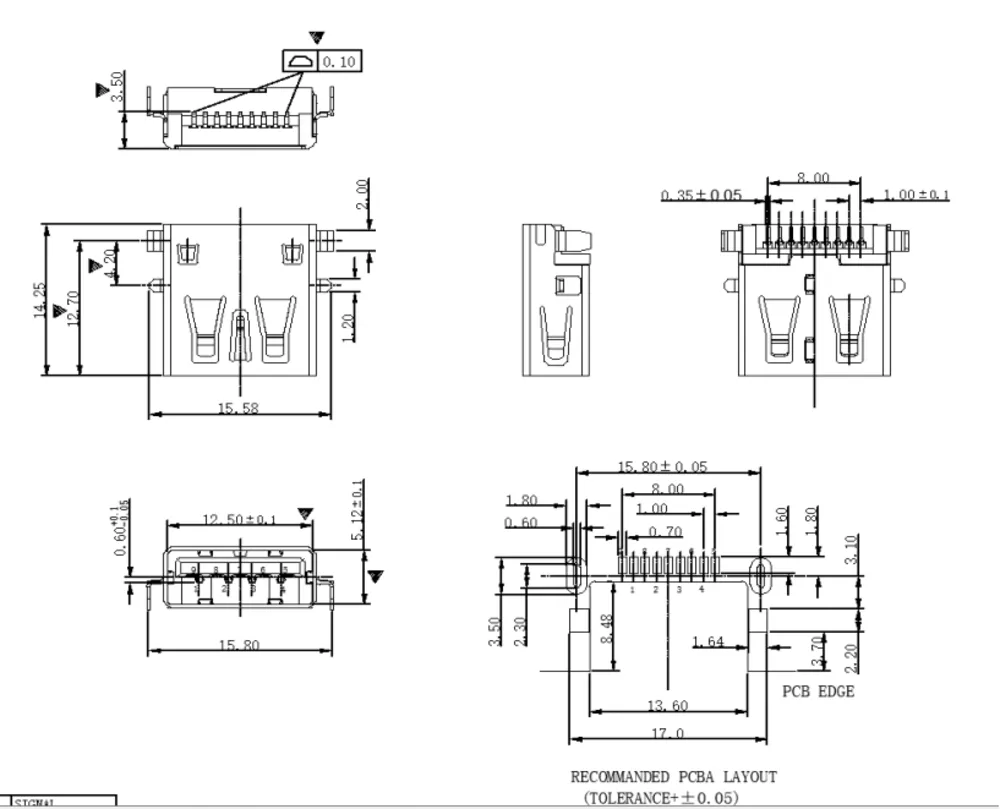

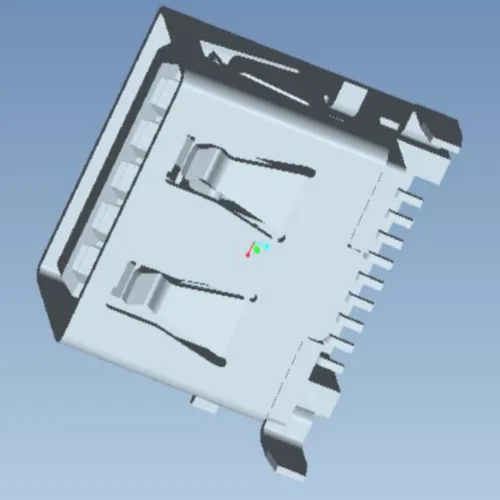

SMT USB 3.0 Single-Layer 90 Degree Board-Mount Connector - L000776
SMT USB 3.0 Single-Layer 90 Degree Board-Mount Connector - L000776
SMT USB 3.0 Single-Layer 90 Degree Board-Mount Connector - L000776

SMT USB 3.0 Single-Layer 90 Degree Board-Mount Connector - L000776

Share

0.60mm SMT height. Copper alloy contacts, brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
Waterproof USB 2.0 + Type-C 16P Connector - C071313
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Surface-mount connector for automated manufacturing. 100V dielectric strength.
