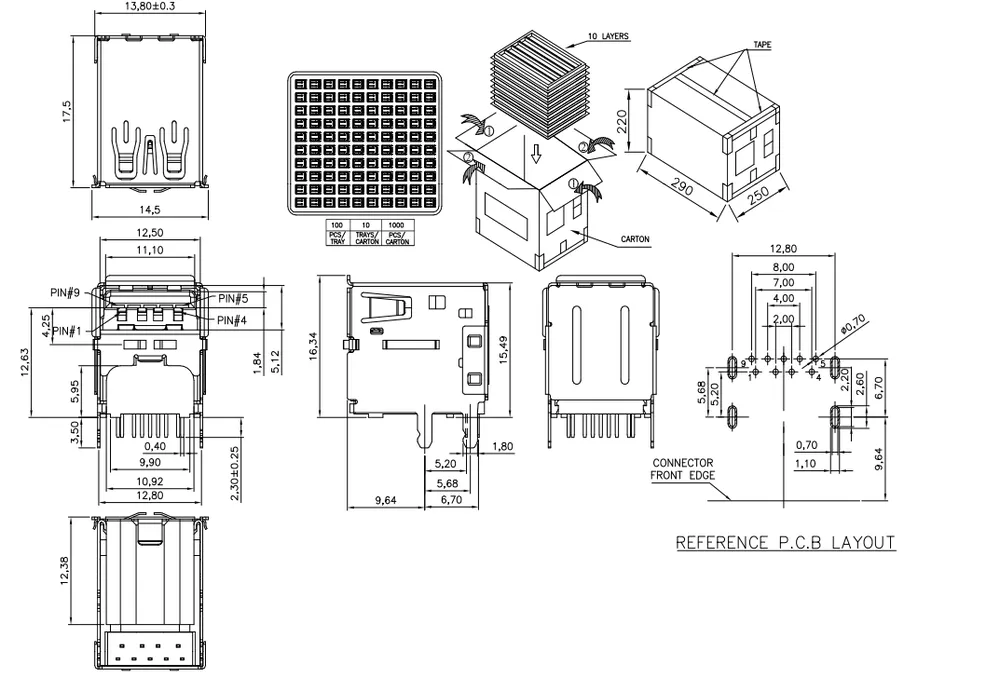

Stackable Type-C USB 3.1 Raised Single-Layer Connector - C071314
Stackable Type-C USB 3.1 Raised Single-Layer Connector - C071314

Stackable Type-C USB 3.1 Raised Single-Layer Connector - C071314

Share

Front-stackable design. Raised single layer, 10Gbps speed.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
