Tomita R/RA Type Rod Core
Share
Ferrite rod cores minimize electromagnetic interference while enhancing operational frequency and overall performance.
- Product Details
- Download
Ferrite rod cores minimize electromagnetic interference while enhancing operational frequency and overall performance. They provide superior noise resistance, increased signal processing efficiency, and reduced waveform distortion. These components are commonly implemented in consumer electronics (TVs, microwaves), automotive systems, mobile networks, computer hardware, industrial power tools, and precision aerospace applications.

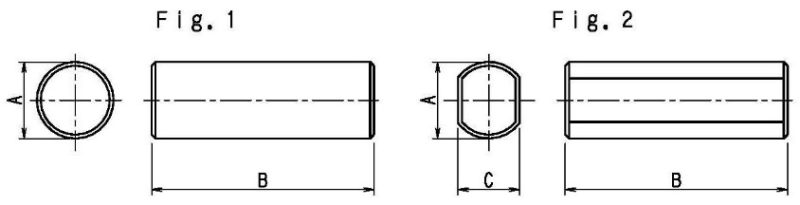

Dimensions
| Code | Dimensions(mm) | Weight (g) | Fig. | |||
|---|---|---|---|---|---|---|
| A | B | C | ||||
| 4D4 -R-1X4.8 | 1.0±0.05 | 4.8±0.2 | ―― | 0.02 | 1 | |
| 2G8 -R-1.2X17 | 1.2 +0/-0.03 | 17.0±0.3 | ―― | 0.09 | 1 | |
| 3A6 -R-1.65X14 | 1.65±0.1 | 14.0±0.3 | ―― | 0.14 | 1 | |
| 2G8 -R-2X23 | 2.0 +0/-0.1 | 23.0±0.5 | ―― | 0.33 | 1 | |
| 2G8 -R-2.4X17 | 2.4±0.1 | 17.0±0.3 | ―― | 0.36 | 1 | |
| 2G8 -R-3X10 | 3.0±0.1 | 10.0±0.3 | ―― | 0.37 | 1 | |
| 2G8 -R-3X13 | 3.0±0.15 | 13.0±0.4 | ―― | 0.44 | 1 | |
| 3A6 -R-3.5X16 | 3.5±0.15 | 16.0±0.4 | ―― | 0.75 | 1 | |
| 2G8 -R-3.5X35 | 3.5±0.15 | 35.0±0.6 | ―― | 1.61 | 1 | |
| 4D4 -R-4X10 | 4.0±0.15 | 10.0±0.3 | ―― | 0.64 | 1 | |
| 4D4 -R-4X15 | 4.0±0.15 | 15.0±0.4 | ―― | 0.92 | 1 | |
| 4D4 -R-4X20 | 4.0±0.15 | 20.0±0.6 | ―― | 1.3 | 1 | |
| 4D4 -R-5X15 | 5.0±0.15 | 15.0±0.4 | ―― | 1.5 | 1 | |
| 4D4 -R-5X20 | 5.0±0.15 | 20.0±0.5 | ―― | 2.0 | 1 | |
| 4D4 -R-5X25 | 5.0±0.15 | 25.0±0.5 | ―― | 2.5 | 1 | |
| 4D4 -R-6X15 | 6.0±0.15 | 15.0±0.4 | ―― | 2.1 | 1 | |
| 4D4 -R-6X20 | 6.0±0.15 | 20.0±0.5 | ―― | 2.9 | 1 | |
| 4D4 -R-6X30 | 6.0±0.15 | 30.0±0.6 | ―― | 4.3 | 1 | |
| D12A-R-6X35 | 6.0±0.15 | 35.0±0.6 | ―― | 5.0 | 1 | |
| D12A-R-6X40 | 6.0 +0.1/-0.2 | 40.0 +0/-0.7 | ―― | 5.6 | 1 | |
| 4D4 -R-7X15 | 7.0±0.2 | 15.0±0.4 | ―― | 3.0 | 1 | |
| 4D4 -R-8X15 | 8.0±0.2 | 15.0±0.5 | ―― | 3.9 | 1 | |
| 4D4 -R-8X20 | 8.0±0.2 | 20.0±0.5 | ―― | 5.0 | 1 | |
| D12A-R-8X21 | 8.0±0.2 | 21.0±0.5 | ―― | 5.2 | 1 | |
| 4D4 -R-8X25 | 8.0±0.2 | 25.0±0.5 | ―― | 6.3 | 1 | |
| D12A-R-8X40 | 8.0±0.2 | 40.0±0.7 | ―― | 8.3 | 1 | |
| D12A-R-10X12 | 10.0 +0.1/-0.25 | 12.0±0.5 | ―― | 4.7 | 1 | |
| D12A-R-10X30 | 10.0±0.2 | 30.0±0.5 | ―― | 12.0 | 1 | |
| 4D4 -R-10X35 | 10.0±0.2 | 35.0±0.6 | ―― | 13.0 | 1 | |
| 4D4 -RA-10X50 | 10.0±0.3 | 50.0±1.0 | 9.0±0.3 | 18.9 | 2 | |
| D12A-RA-10X59 | 9.7±0.2 | 59.0 +0.5/-1.0 | 9.0±0.3 | 20.3 | 2 | |
| 4D4 -RA-15X50 | 14.7±0.3 | 50.0 +0/-3 | 13.5±0.3 | 42.2 | 2 | |
