Tomita RI Type Bead Ferrite

RI Type Bead Ferrite is a passive electronic component used to suppress high-frequency electromagnetic interference (EMI). It mainly absorbs or reflects noise through its high-frequency impedance characteristics, thereby improving the electromagnetic compatibility (EMC) of the circuit.

[email protected]

Tomita RIB Type Ferrite Core

Tomita RM Core Transformer Ferrite

Ferrite Core Ferrite Core for Transformer magnetic core clamp on ferrite bead Bead Ferrite

Product Details
Download

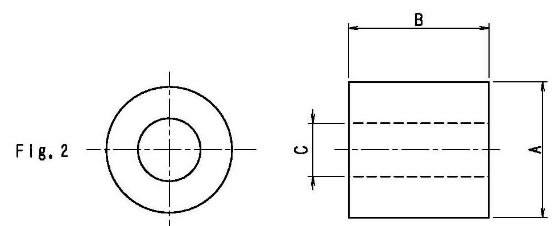

Dimensions

Cores	Dimensions(mm)			Weight (g)	Fig.
Cores	A	B	C	Weight (g)	Fig.
RI-2.5X1.2-1	2.5±0.15	1.2±0.15	1.0±0.1	0.03	2
RI-2.7X3.7-1.2	2.7±0.15	3.7±0.15	1.2±0.1	0.08	2
RI-3X3-1	3.0±0.2	3.0±0.2	1.0±0.15	0.10	2
RI-3X4-1	3.0±0.2	4.0±0.2	1.0±0.15	0.13	2
RI-3.5X1.5-1A	3.5±0.15	1.5±0.15	1.0±0.1	0.07	2
RI-3.5X2.5-1A	3.5±0.15	2.5±0.15	1.0±0.1	0.12	2
RI-3.5X3.5-1A	3.5±0.15	3.5±0.15	1.0±0.1	0.16	2
RI-3.5X5-1.2	3.5±0.2	5.0±0.2	1.2±0.15	0.23	2
RI-3.5X7-1.2	3.5±0.2	7.0±0.2	1.2±0.15	0.29	2
RI-3.7X5.1-1.4	3.7±0.1	5.1±0.2	1.4±0.1	0.24	2
RI-5X6-2.5	5.0±0.2	6.0±0.2	2.5±0.15	0.48	2
RI-5X10.7-2.3	5.0±0.2	10.7±0.3	2.3±0.1	0.85	2
RI-5.8X6.4-2	5.8±0.2	6.4±0.2	2.0±0.15	0.78	2

Materials

3A6
3A4
D12A
6B2
