Tomita TRH Type Toroid Cores
Tomita TRH Type Toroid Cores

Tomita TRH Type Toroid Cores

Share

TRH Type Ferrite Cores have large output current, low loss, high voltage resistance, high inductance and low price.

    [email protected]
    Previous
    Tomita TR Type Toroid Cores
    Ferrite CoreFerrite Core for Transformermagnetic coreferrite rod coreToroid Corestoroid coil
    • Product Details
    • Download

    TRH Type Ferrite Cores have large output current, low loss, high voltage resistance, high inductance and low price.

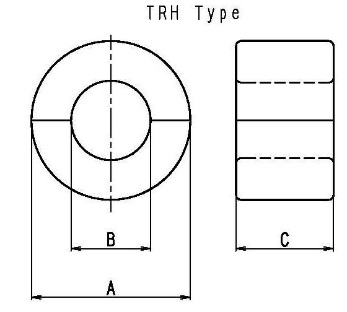

    CoresDimensions(mm)Weight
    (g)
    ABC
    3A4-TRH-16X8X1316.3±0.48.15±0.413.0
    +0.4/-0.2    		10.2
    3A4-TRH-16X8X1616.3±0.48.15±0.416.0
    +0.4/-0.2    		12.5
    3A4-TRH-20X10X1020.45±0.510.25±0.410.0±0.512.3
    3A4-TRH-23X11X1423.8±0.511.4±0.414.0±0.424.5
    3A4-TRH-25X15X1225.0±0.415.0±0.412.0±0.318.9
    3A4-TRH-28X16X1328.5±0.516.3±0.513.0±0.428.4
    3A4-TRH-28X16X2028.5±0.516.3±0.520.0±0.643.0
    3A4-TRH-40X27X15A40.55±0.827.4±0.615.0±0.557.4
