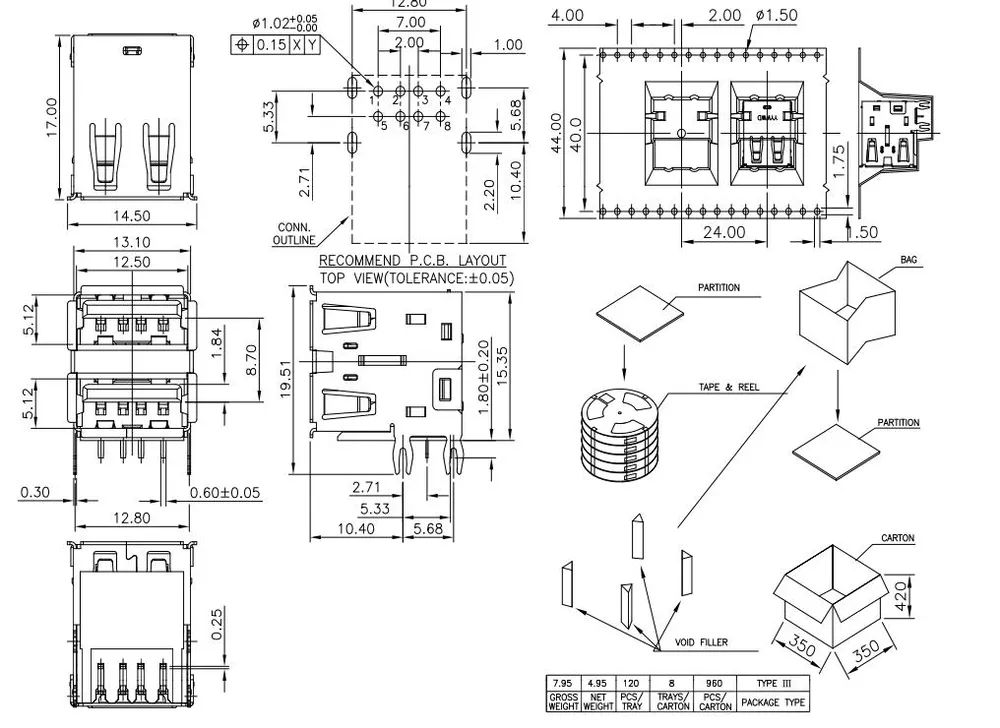

USB 2.0 Double-Layer 90 Degree 4-Pin Connector - C023546
USB 2.0 Double-Layer 90 Degree 4-Pin Connector - C023546

USB 2.0 Double-Layer 90 Degree 4-Pin Connector - C023546

Share

90 Degree double-layer design with 4 pins. 1.5A current, 30V DC, UL94-V0 housing.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100M ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
4-Pin Connectorusb connector typesfemale connector usb
  • Product Details
  • Download

Industrial USB 2.0 connector with phosphor bronze contacts, nickel-plated SUS shell. Operating range -55Degree C to 85Degree C.
