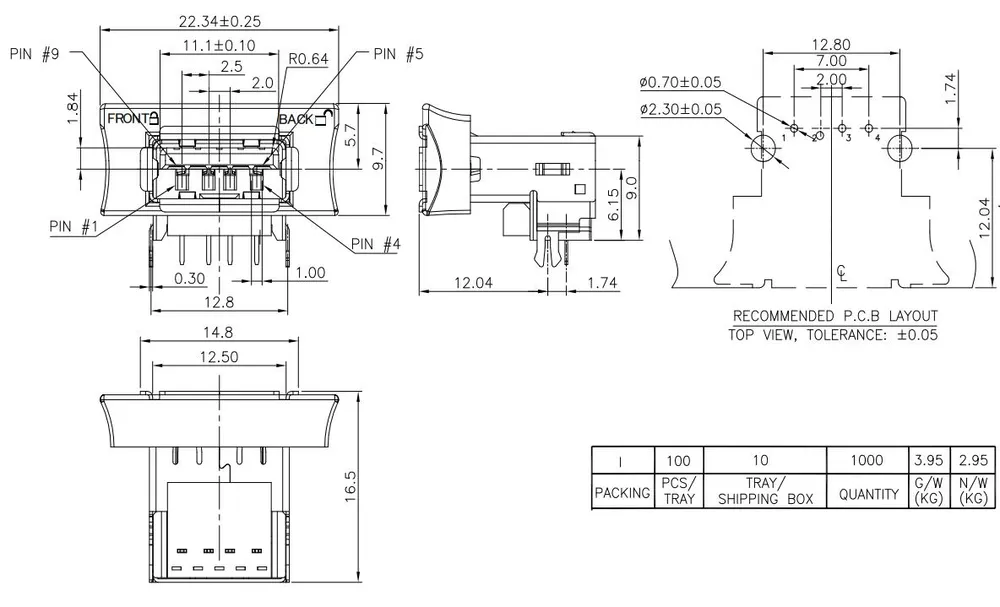

USB 2.0 Single-Layer 90 Degree Forked-Pin Connector - C071188
USB 2.0 Single-Layer 90 Degree Forked-Pin Connector - C071188

USB 2.0 Single-Layer 90 Degree Forked-Pin Connector - C071188

Share
pForked pins with locking clip. 6.15mm height, 30V DC rating./p
  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SK7, nickel plated
[email protected]
Previous
USB 2.0 Single-Layer 90 Degree Forward Connector - C023553
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

Secure-lock design with nickel-plated SK7 shell. 100M ohm insulation resistance.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

USB 3.0 Single-Layer 180 Degree Bent-Pin Connector - L000683

USB 3.0 Single-Layer 180 Degree Bent-Pin Connector - L000683

<p>14.80mm height, rolled-edge. Copper alloy contacts.</p>

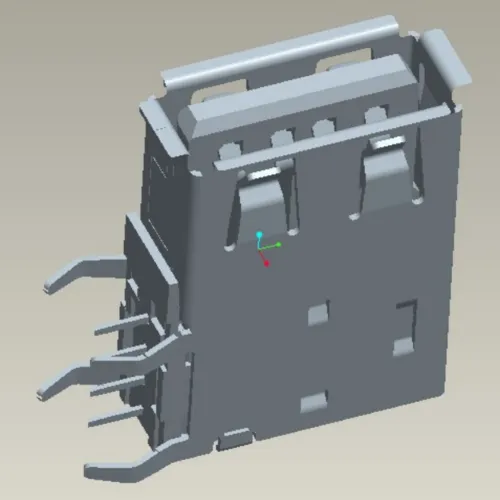

Side-Mount USB 2.0 90 Degree Bent-Pin Connector - C071171
