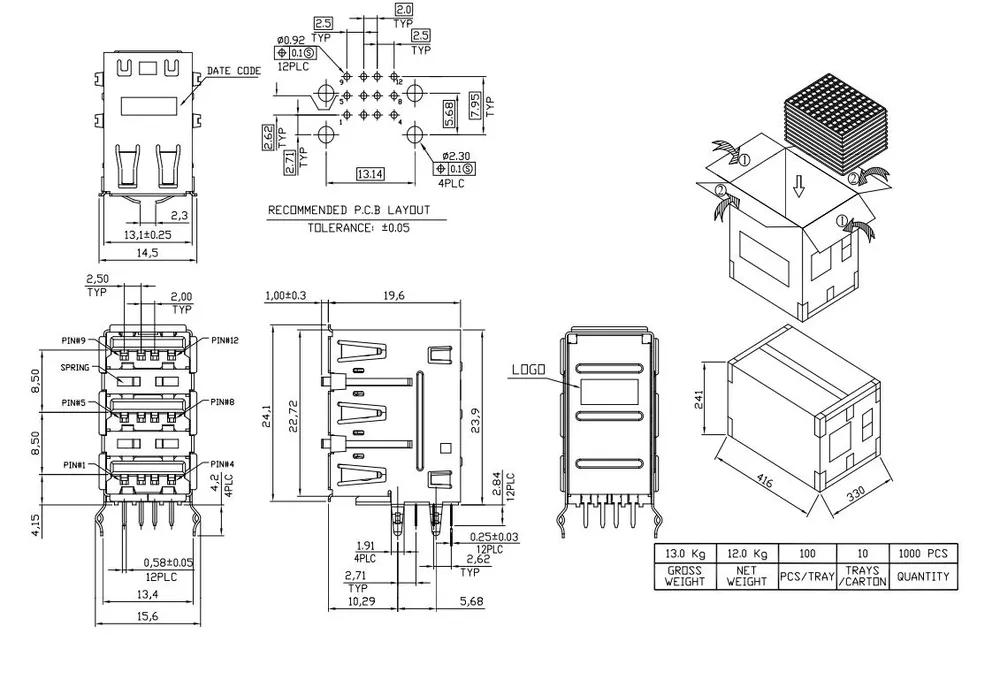

USB 2.0 Triple-Layer 90 Degree Angled-Pin Connector - C023680
USB 2.0 Triple-Layer 90 Degree Angled-Pin Connector - C023680

USB 2.0 Triple-Layer 90 Degree Angled-Pin Connector - C023680

Share
pTriple-layer 90 Degree design with bent pins. 1.5A current rating, UL94-V0 compliant./p
  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 2.0 Double-Layer 90 Degree Connector - C023546
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

Durable connector with SUS/phosphor bronze shell. 30m ohm contact resistance for stable data transfer.
