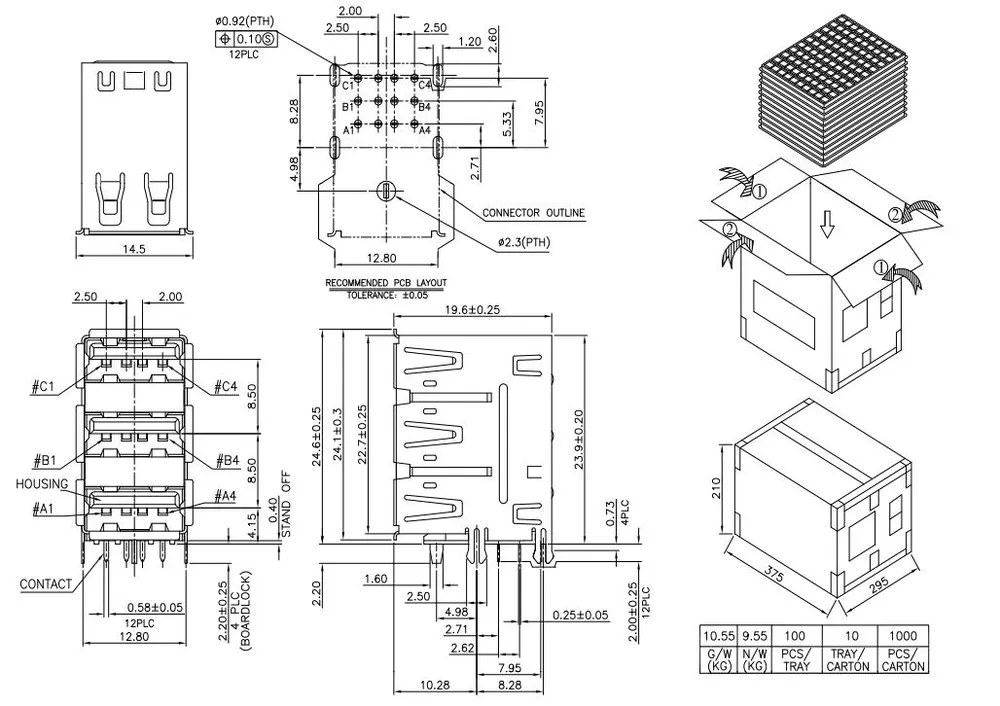

USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227
USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227

USB 2.0 Triple-Layer 90 Degree Forked-Pin Connector - C040227

Share

Triple-layer fork-pin design. 1.5A current, 30m ohm contact resistance.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Modified Single-Layer USB 2.0 90 Degree Connector - C040080
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

Robust connector with phosphor bronze contacts. UL94-V0 flame rating for industrial use.
