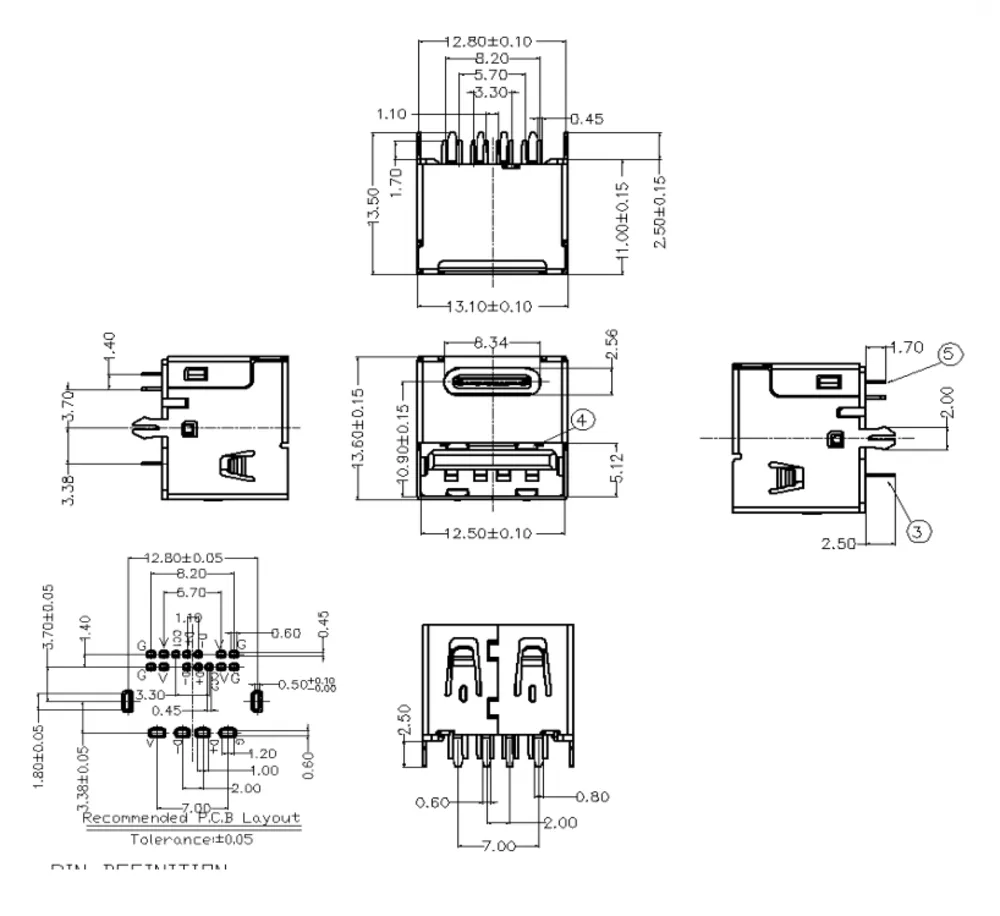

USB 2.0 + Type-C 14P 180 Degree Combo Connector - C076107
USB 2.0 + Type-C 14P 180 Degree Combo Connector - C076107

USB 2.0 + Type-C 14P 180 Degree Combo Connector - C076107

Share

180 Degree hybrid design. Copper alloy contacts, brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
USB 3.1 Double-Layer + HDMI 2.1 Combo Connector - L000797
usb connector typesUSB A connectorusb charger typesCombo Connectorfemale usb c portusb c female portType C Female
  • Product Details
  • Download

Dual-port connector supporting USB 2.0 and Type-C protocols. 30V DC rating.
