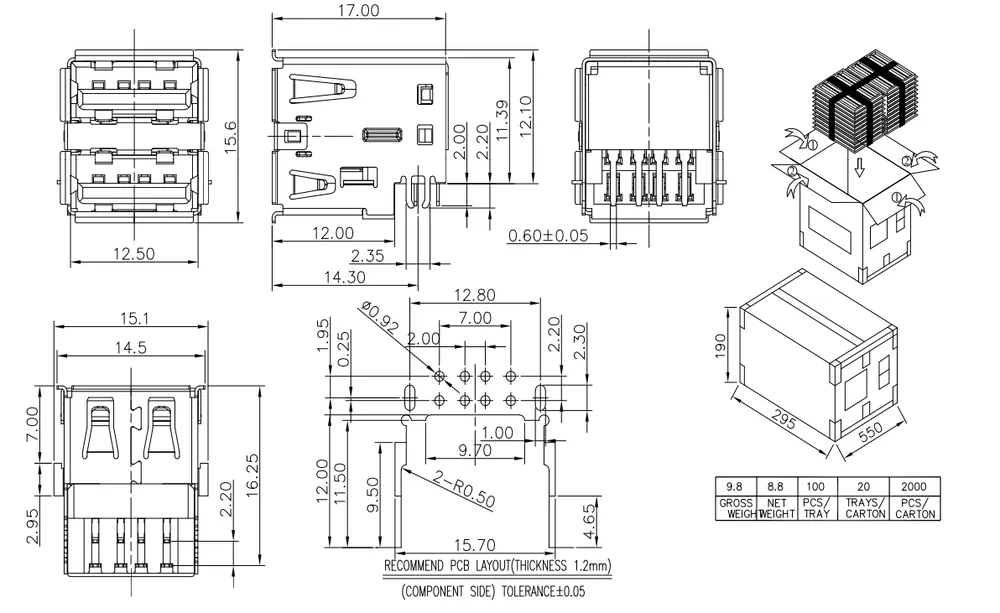

USB 3.0 Double-Layer 90 Degree Connector - C023069
USB 3.0 Double-Layer 90 Degree Connector - C023069

USB 3.0 Double-Layer 90 Degree Connector - C023069

Share
pReverse-mount double-layer design. 30V DC, 100V dielectric strength./p
  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: Brass/SUS, nickel plated
[email protected]
Previous
Forward USB 3.0 Side-Mount Forked-Pin Connector - C071329
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a female
  • Product Details
  • Download

High-current connector with brass/SUS shell. -55 Degree C to 85 Degree C temperature range.
