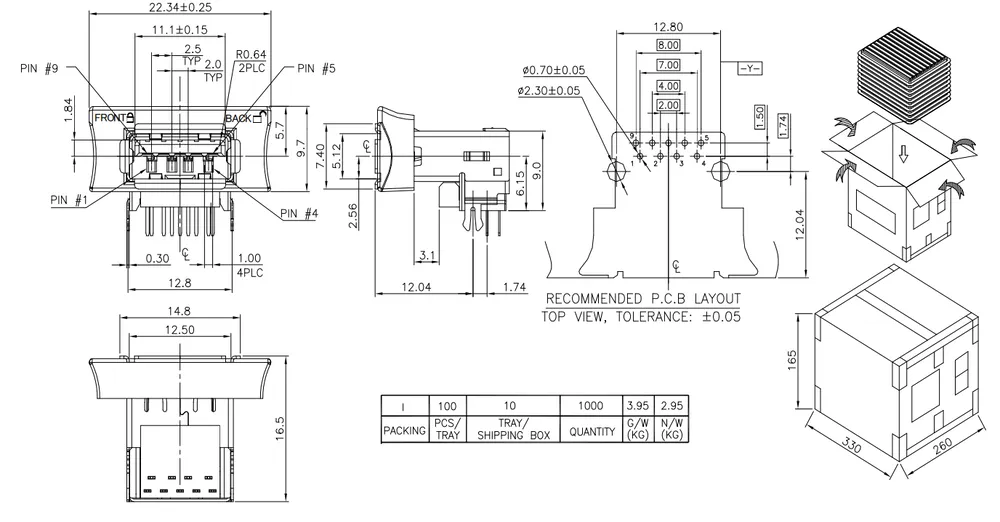

USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - C071027
USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - C071027

USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - C071027

Share
p6.15mm height with locking clip. SK7 shell, 30V rating./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SK7, nickel plated
[email protected]
Previous
USB 3.0 Single-Layer 180 Degree Locking Connector - C071026
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a female
  • Product Details
  • Download

Low-profile connector with 30m ohm contact resistance. Ideal for thin devices.
