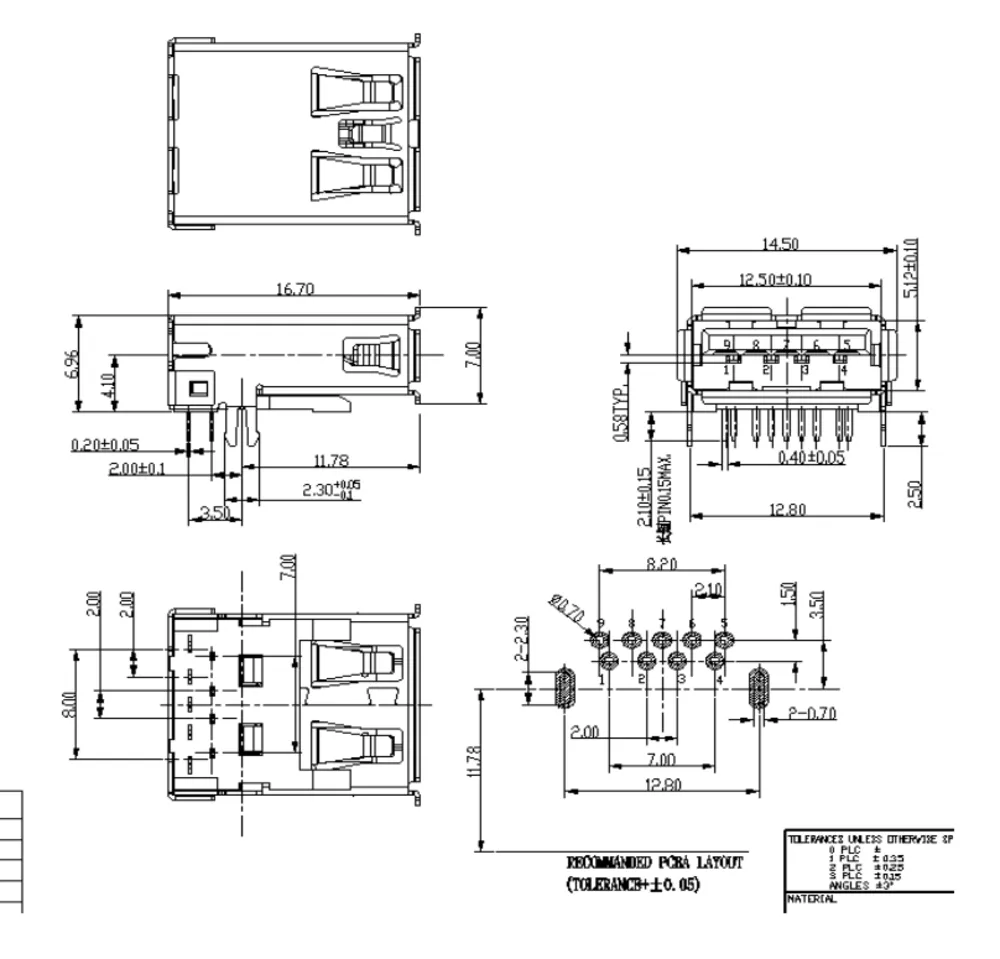

USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - L000714
USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - L000714

USB 3.0 Single-Layer 90 Degree Forked-Pin Connector - L000714

Share

Rolled-edge, forked pins. Brass shell, 30V rating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
USB 3.0 Single-Layer 90 Degree Straight-Pin Connector - L000599
usb connector typesUSB A connectorusb charger types
  • Product Details
  • Download

Secure-terminal connector with 100M ohm insulation. Vibration-resistant design.
