USB 3.0 Single-Layer 90 Degree Straight-Pin Connector - L000599
USB 3.0 Single-Layer 90 Degree Straight-Pin Connector - L000599

USB 3.0 Single-Layer 90 Degree Straight-Pin Connector - L000599

Share

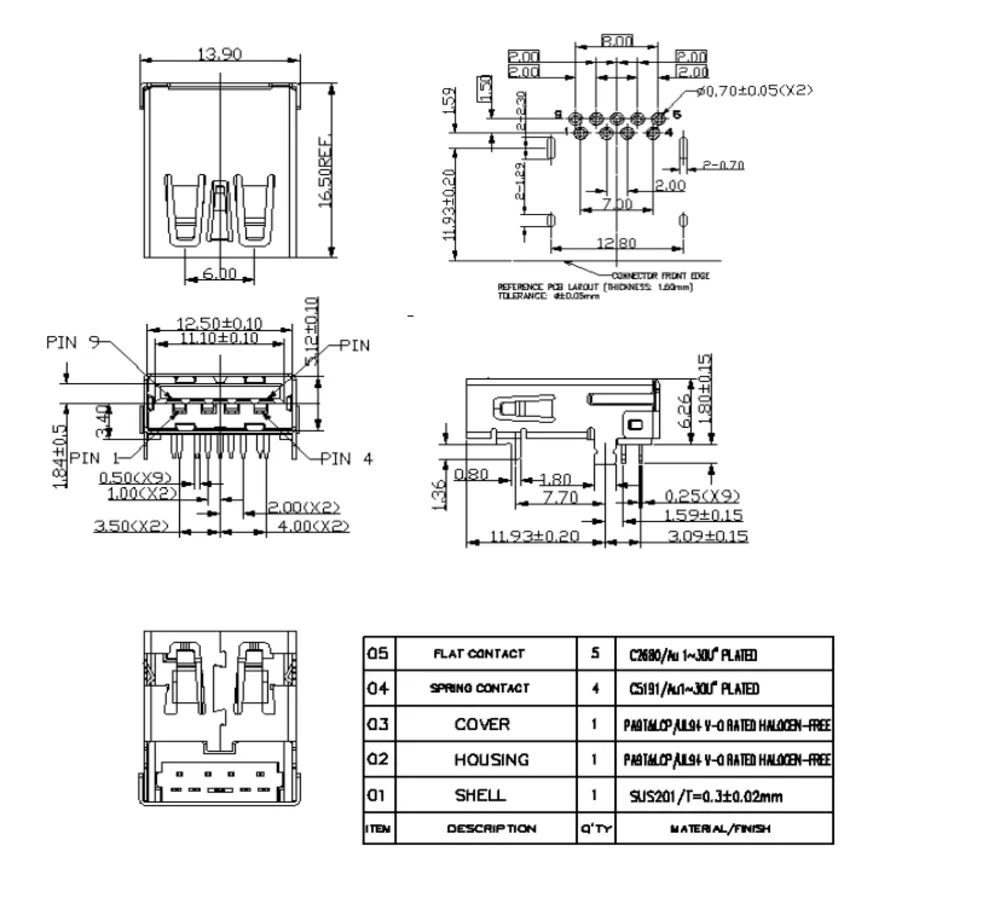

6.26mm height, straight pins. Copper alloy contacts.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Cooper Alloy, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 2.0 + Type-C 14P 180 Degree Combo Connector - C076107
usb connector typesUSB A connectorusb charger types
  • Product Details
  • Download

Low-profile connector with 1.8A power delivery. Board-edge applications.
