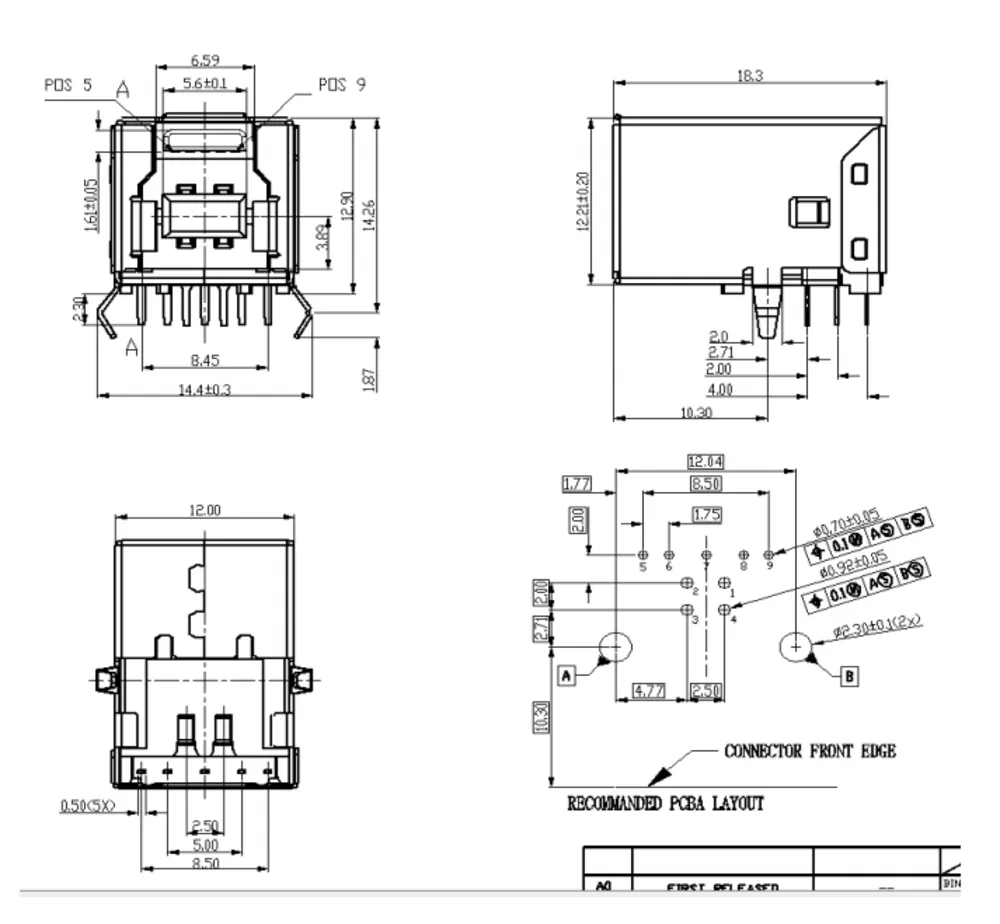

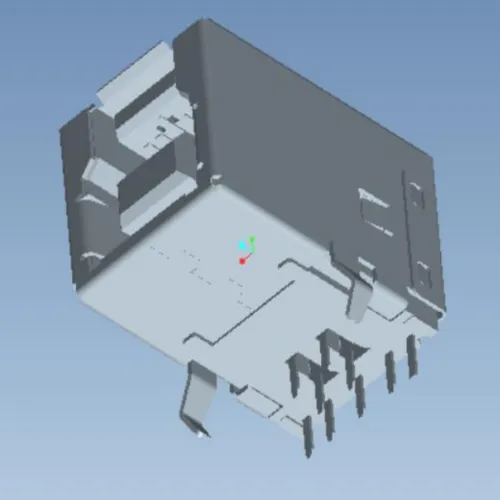

USB 3.0 Type-B Single-Layer 90 Degree Connector - L000428
USB 3.0 Type-B Single-Layer 90 Degree Connector - L000428
USB 3.0 Type-B Single-Layer 90 Degree Connector - L000428

USB 3.0 Type-B Single-Layer 90 Degree Connector - L000428

Share
pType-B female port. 90 Degree orientation, copper alloy contacts./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
Raised USB 3.0 Single-Layer 90 Degree Connector - L000424
usb connector typesusb charger typesusb3 femaleusb 3 connector typesUSB B connector
  • Product Details
  • Download

Peripheral connector with 100M ohm insulation. Printer/scanner applications.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

USB 3.1 Single-Layer 180 Degree Straight-Pin Connector - C071326

USB 3.1 Single-Layer 180 Degree Straight-Pin Connector - C071326

<p>GEN2 protocol support. Straight pins, SUS shell.</p>
USB 2.0 Type-B 180 Degree Bent-Pin Female Connector - C071199

USB 2.0 Type-B 180 Degree Bent-Pin Female Connector - C071199

<p>180 Degree Type-B female. SPCC shell, UL94-V0 housing.</p>
Extended USB 3.1 Double-Layer Rolled-Edge Connector - L000574

Extended USB 3.1 Double-Layer Rolled-Edge Connector - L000574

<p>19.64mm length, rolled-edge + bent pins. Nickel-plated SUS.</p>
USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

<p>Type-B female port. 90 Degree bent pins, PBT housing.</p>
USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518

USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518

<p>13.70mm height. Nickel-plated brass shell.</p>

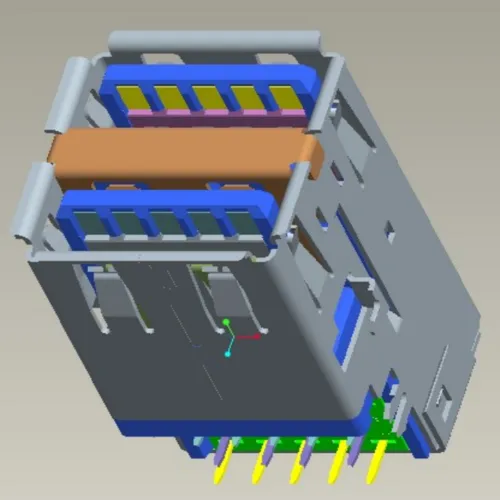

Deep-Mount USB 3.0 Double-Layer Connector - C071190
