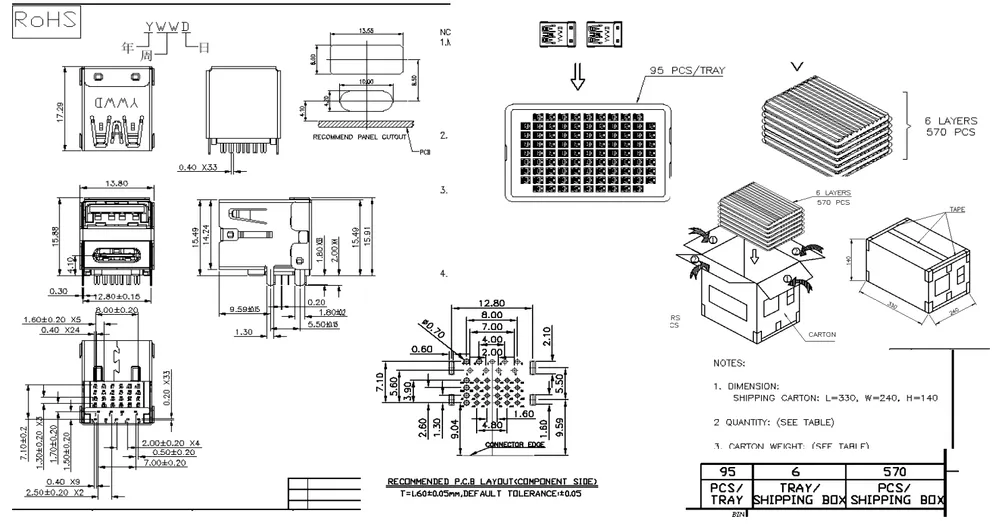

USB 3.0 + Type-C 24P 90 Degree Combo Connector - C071143
USB 3.0 + Type-C 24P 90 Degree Combo Connector - C071143

USB 3.0 + Type-C 24P 90 Degree Combo Connector - C071143

Share

Hybrid USB 3.0 + Type-C. 90 Degree orientation, nickel-plated SUS.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Dual Type-C 24P 90 Degree Combo Connector - C071243
usb connector typesUSB A connectorusb charger typesCombo Connectorfemale usb c portusb c female portType C Female
  • Product Details
  • Download

Dual-protocol connector for data syncing + power delivery.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

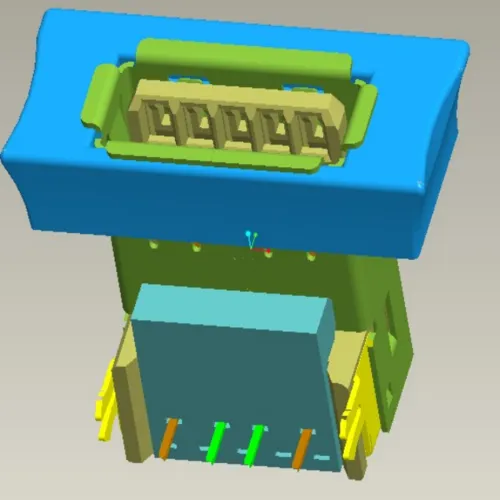

USB 2.0 Single-Layer 90 Degree Forked-Pin Connector - C071188
