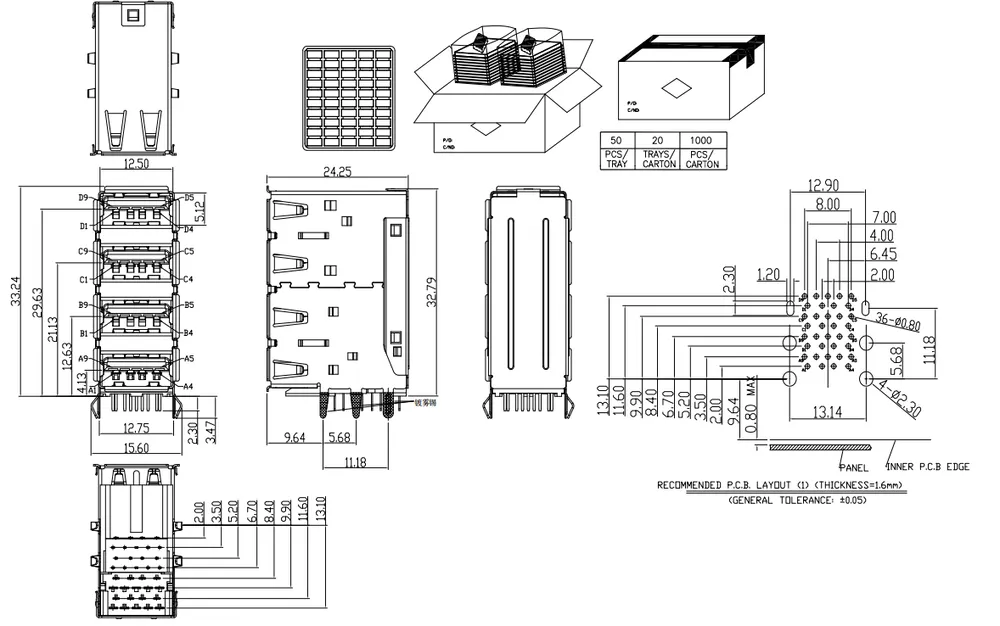

USB 3.1 Quad-Layer Connector - C071290
USB 3.1 Quad-Layer Connector - C071290

USB 3.1 Quad-Layer Connector - C071290

Share

Four-layer architecture. SUS shell with fog-tin plating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.1 Triple-Layer Connector - C071289
usb connector typesUSB A connectorusb charger typesusb3 femaleusb 3 1 type a
  • Product Details
  • Download

Ultra-high-density connector. Supports simultaneous multi-device charging.
