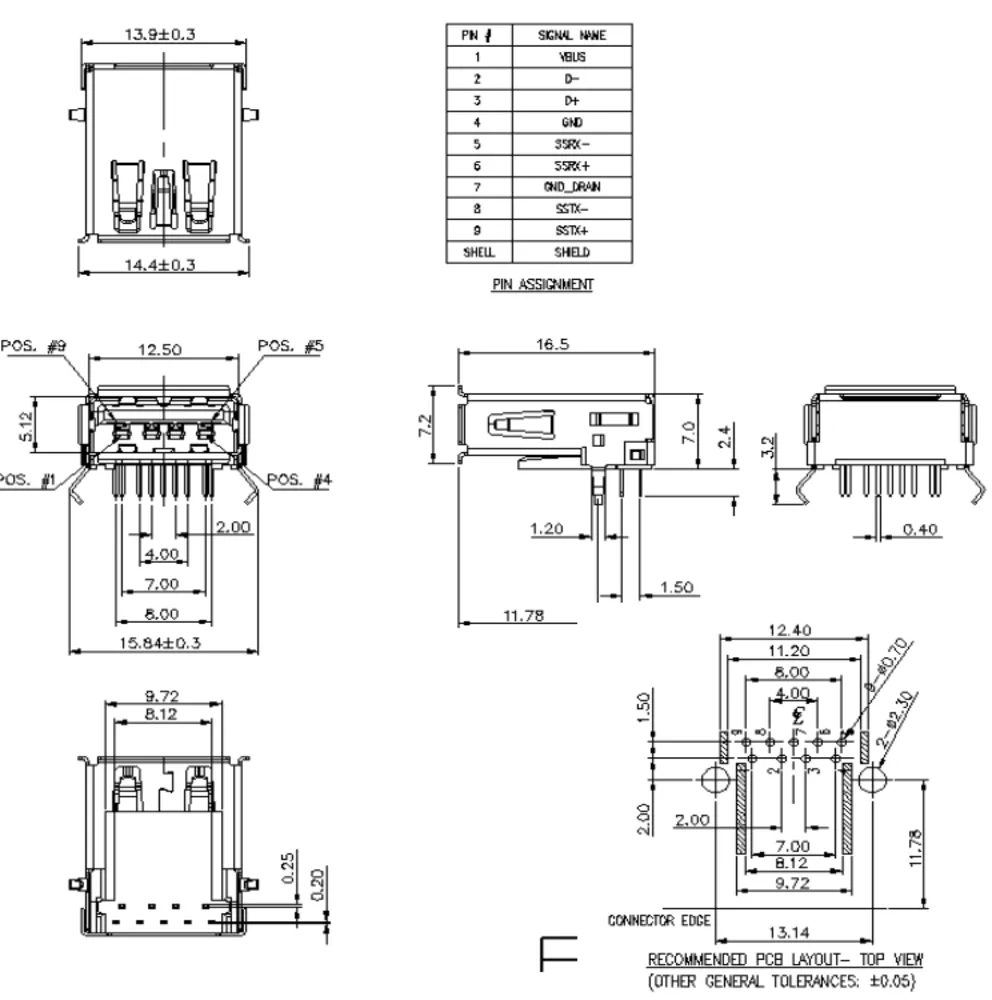

USB 3.1 Single-Layer 90 Degree Bent-Pin Connector - C071261
USB 3.1 Single-Layer 90 Degree Bent-Pin Connector - C071261

USB 3.1 Single-Layer 90 Degree Bent-Pin Connector - C071261

Share

GEN2 protocol. 90 Degree bent pins, nickel-plated SUS.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.1 Single-Layer 180 Degree Straight-Pin Connector - C071326
usb connector typesUSB A connectorusb charger typesusb 3 1 type a
  • Product Details
  • Download

Right-angle connector with 1.8A power delivery. Low insertion loss design.
