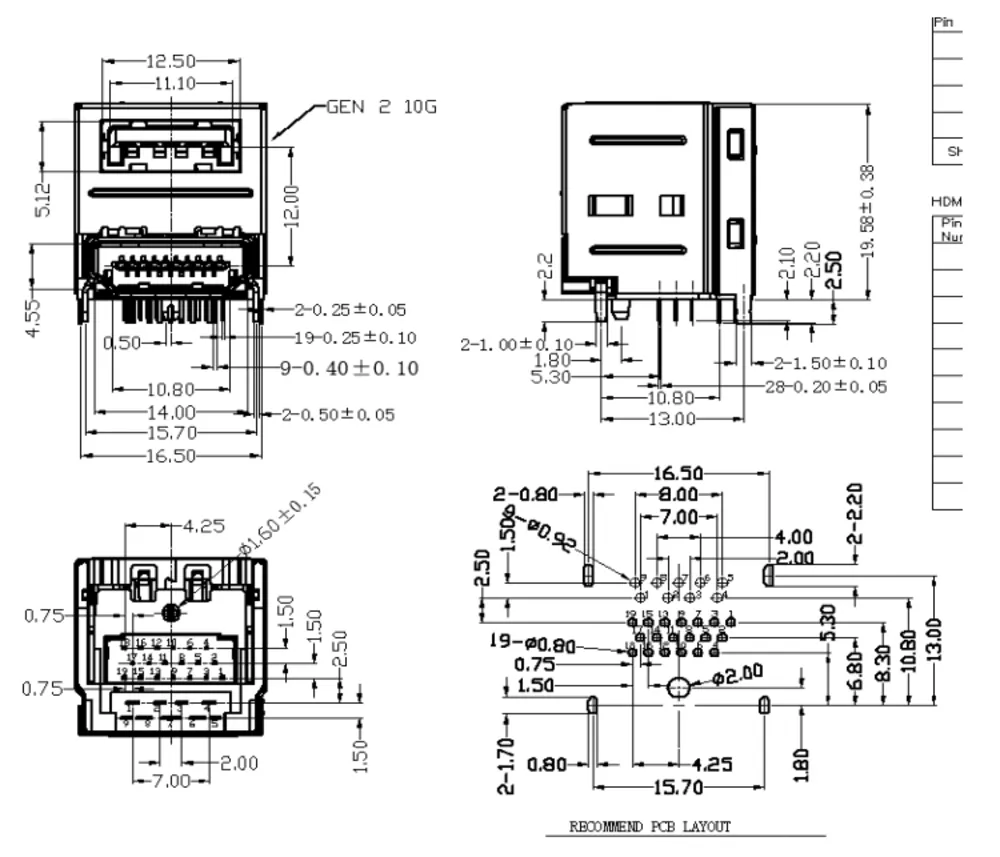

USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703
USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703

USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703

Share

Dual-protocol integration. PBT+LCP housing, 30V rating.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
USB 2.0 Type-B 180 Degree Bent-Pin Female Connector - C071199
usb connector typesUSB A connectorusb charger typesusb 3 1 type aCombo Connectorusb 3 connector types
  • Product Details
  • Download

Hybrid connector supporting USB 3.1 data and HDMI 2.1 video.
