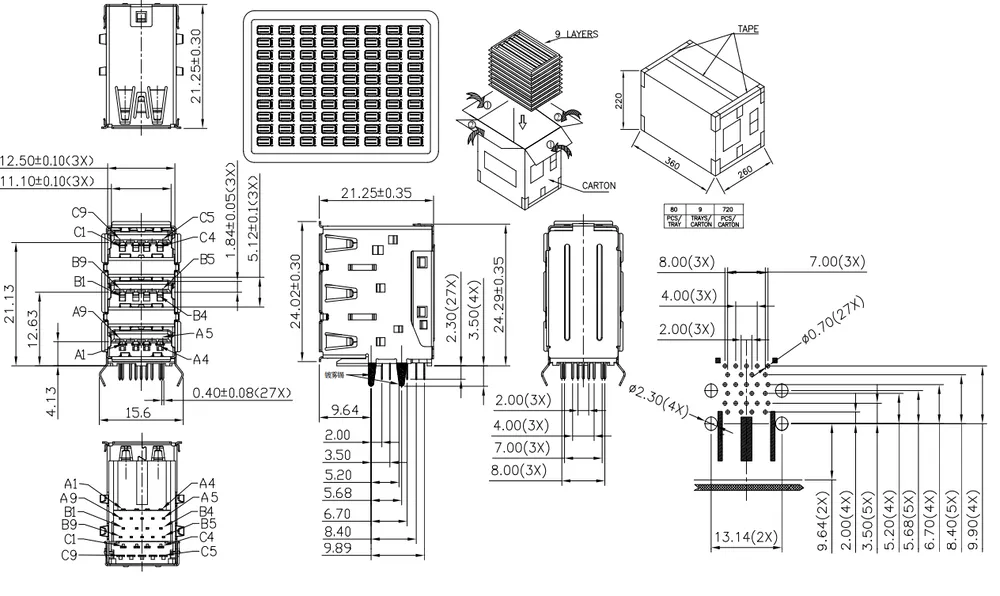

USB 3.1 Triple-Layer Connector - C071289
USB 3.1 Triple-Layer Connector - C071289

USB 3.1 Triple-Layer Connector - C071289

Share

Three-layer stacked design. Fog-tin plated contacts.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Extended USB 3.1 Double-Layer Rolled-Edge Connector - L000574
usb connector typesUSB A connectorusb charger typesusb3 femaleusb 3 1 type a
  • Product Details
  • Download

High-capacity connector with 10Gbps speed. UL94-V0 compliant housing.
