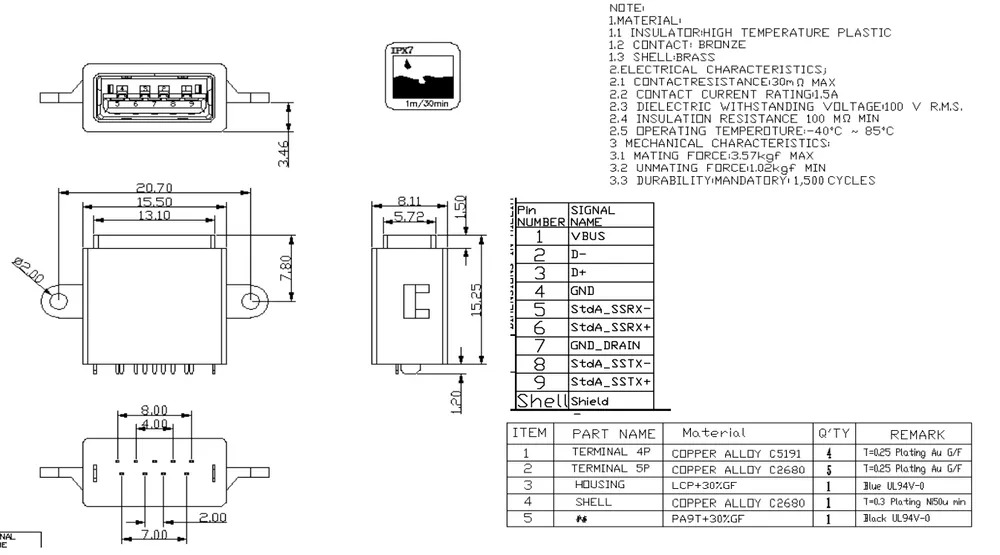

Waterproof USB 3.0 Single-Layer 180 Degree Connector - L000706
Waterproof USB 3.0 Single-Layer 180 Degree Connector - L000706

Waterproof USB 3.0 Single-Layer 180 Degree Connector - L000706

Share

IP67-rated 180 Degree design. Copper alloy contacts, brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
Waterproof Vertical Type-C 16P Connector - L000676
usb connector typesusb charger typesUSB C connectorwaterproof usb c portwaterproof usb connector
  • Product Details
  • Download

Sealed connector for wet environments. -55 Degree C to 85 Degree C operating range.
